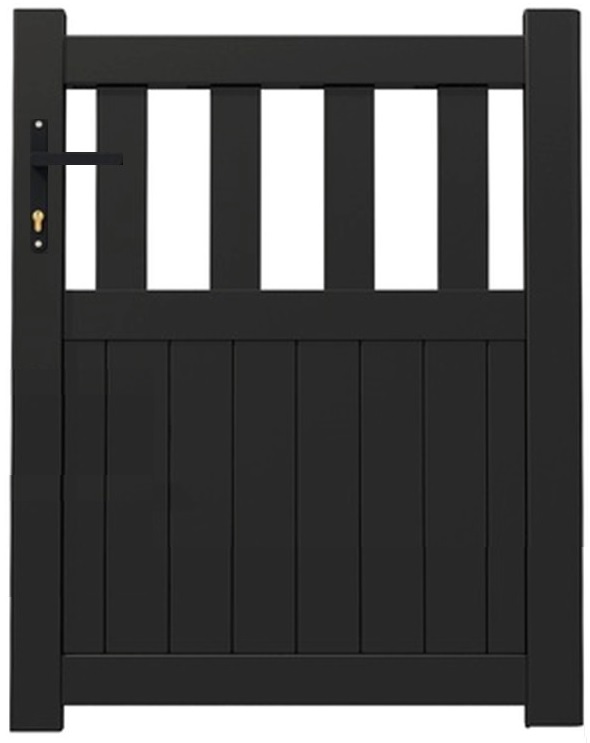

Oxfordshire Aluminium Pedestrian Side Gate | Vertical Boards & Open Pales


Oxfordshire Aluminium Pedestrian Side Gate | Vertical Boards & Open Pales

The Oxfordshire Aluminium Pedestrian Gate is ideal for any residential entrance thanks to its perfect balance of style and security benefits. Featuring solid vertical infill boards at the base for privacy and open pale sections above for visibility, this contemporary design is an excellent match for both traditional and modern properties. Manufactured from high-quality aluminium, it comes in a choice of powder-coated black or anthracite grey paint colours and is available to purchase online in a wide range of sizes at an affordable price.

IMPORTANT INFORMATION ABOUT ORDERING SIZES

Prior to ordering, please refer to the chart in the product description to determine the opening size needed between your brickwork or posts. Please note that the measurements shown in our dropdown menu are the exact width and height of the gate and do not include the additional space needed for hinges, lock plate, and ground clearance.

Delivery:
Please allow approximately 4 - 5 weeks lead time for delivery of this product.

Select the Size You Need:

Other Options & Accessories

Choose the Colour:
Do You Need Posts?:

The Oxfordshire Aluminium Pedestrian Gate benefits from a combination of traditional styling and modern durability. Suitable for a wide range of residential applications, it features solid vertical infill boards at the base for privacy and open pales at the top for light and airflow. An outstanding choice for both period and contemporary properties, the gate is constructed from high-quality aluminium with a hardwearing powder-coated finish giving it exceptional weather resistance and low maintenance benefits.

Oxfordshire Aluminium Side Gate Specification

  • Suitable for all property types and installation locations in any area of the home and garden.
  • Durable aluminium construction provides excellent rust and corrosion resistance with no warping or deforming.
  • Available in a high quality black or anthracite grey powder coated paint finish for long-lasting protection.
  • Choose from a wide range of width and height combinations to suit different opening requirements.
  • Supplied complete with surface-mounted wall hinges and floor-mounted hinge bracket
  • Includes an integrated lock with handle and full-length lock plate to allow secure and convenient access.
  • Surface mounted fittings can be attached direct to existing masonry surfaces or onto the optional aluminium posts allowing for flexible mounting options.
  • Limited 5 year manufacturers guarantee.






Includes the Following Accessories

1 x Lock & Handle (includes 2 x keys)

1 x Full Length Lock Keep

2 x Surface Mounted Adjustable Wall Mounted Hinges

1 x Floor Mounted Hinge






Ordering Sizes

The dimensions shown in the drop-down menu represent the actual gate measurements only. Extra clearance is required for the hinges and locking mechanisms.

What Opening Width is Required?

To ascertain the correct opening size for the various options shown in the menu, please use the table below.

Aluminium gate opening width requirements

900mm Physical Width: The gap between your brickwork or posts will need to be 930mm

1000mm Physical Width: The gap between your brickwork or posts will need to be 1030mm

1100mm Physical Width: The gap between your brickwork or posts will need to be 1130mm

1200mm Physical Width: The gap between your brickwork or posts will need to be 1230mm

Height Dimensions

The hinges fit on the top and bottom of the vertical hanging stile. Consequently, the surface you mount the hinges onto must be a minimum of 100mm taller than the physical gate height. If this is not possible, you will need to order a gate with a shorter stature or install posts to account for this.






Are Optional Aluminium Posts Required?

We recommend purchasing aluminium posts if the gate cannot be attached to existing walls. Depending on the length posts you select, they can either be set in concrete below ground level or bolted to solid surfaces.

Post Specification

Profile: 3.5mm thick

Size: 100mm x 100mm x 2400mm

Integral base plate (with fixing holes)

Available in black or anthracite grey

A post cap prevents water ingress.






Do you Need Help & Advice?

If you are unsure what size to order, have a question, or need a quote for a made-to-measure size, please get in touch with us, and we will be happy to help.

Made to measure aluminium pedestrian gates are available - Fill in our enquiry form to get a quote



Available Powdercoated Paint Colours

Aluminium pedestrian gate colour options

Lock & Handle (included as standard)

Pedestrian gate lockset

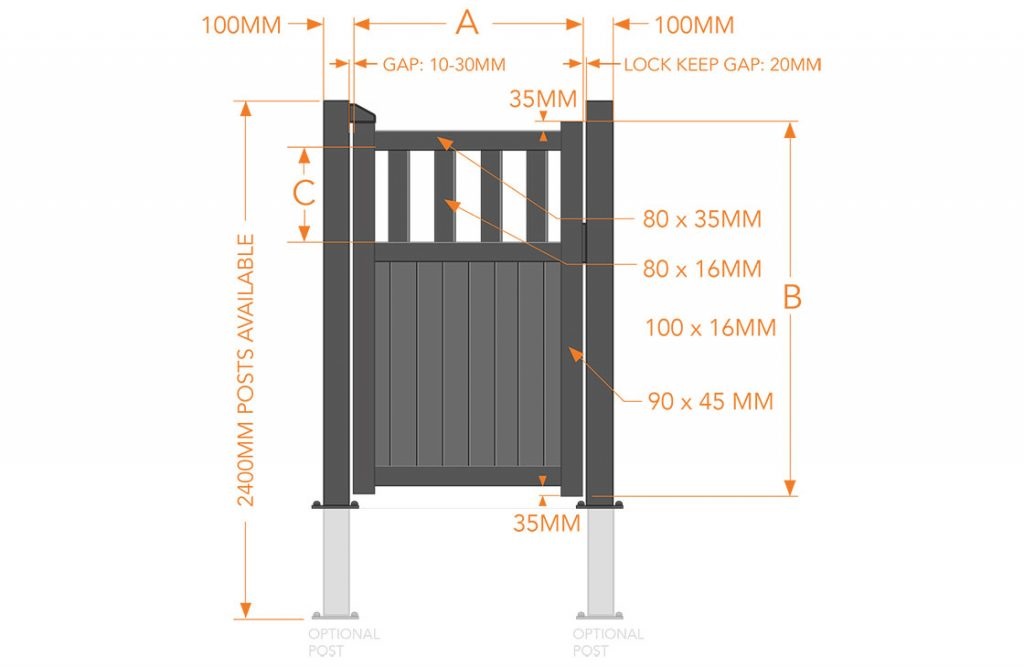

Specification

Oxfordshire aluminium gate specification
