Kensington Aluminium Pedestrian Side Gate | Horizontal Board


Kensington Aluminium Pedestrian Side Gate | Horizontal Board

The Kensington Aluminium Pedestrian Gate features an eye-catching horizontal board design and can be purchased in various width and height combinations to suit your needs. It will require minimal maintenance, features a hardwearing powder-coated finish, and will provide any property with a contemporary appearance at an affordable price.

IMPORTANT INFORMATION ABOUT ORDERING SIZES

The dimensions displayed in the drop-down menu are the precise width and height of the gate. We have yet to incorporate the extra space required for the hinges, lock plate, and ground clearance. Before buying, please refer to the chart in the item's description to determine the exact opening measurement you require between your masonry or posts.

Select the Size You Need:

Other Options & Accessories

Choose the Colour:
Do You Need Posts?:

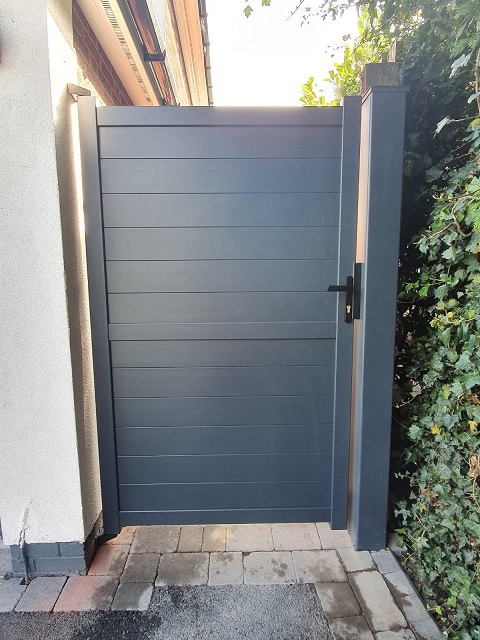

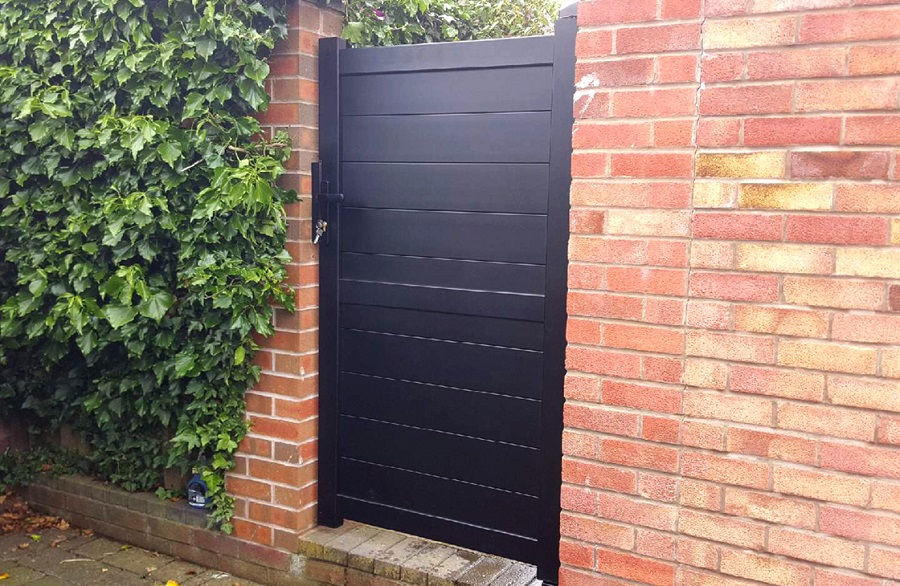

The Kensington Aluminium Pedestrian Gate is a contemporary interpretation of a classic pattern. Its horizontal infill panel and flat top rail are made of low-maintenance aluminium and will make an impressive design impact on any entrance around your home and garden. With a solid panel, the side gate delivers a high degree of privacy and security, needs almost no upkeep, and is available in a durable powder-coated paint finish in a choice of black or anthracite grey. Suitable for DIY installations, a pair of surface-mounted wall hinges and one floor-mounted hinge is included, thus offering you the flexibility to install it in a way that best meets your requirements. Furthermore, with a lock with a handle and full-length keep, you can effortlessly secure the gate when required.

Kensington Aluminium Side Gate Specification

  • Perfect for numerous styles of properties.
  • High-quality aluminium construction.
  • Choose from black or modern anthracite grey powder-coated paint options.
  • Not sensitive to distorting or warping.
  • Available to purchase online in a selection of width and height configurations.
  • Suitable for DIY projects, the gate is easy to install.
  • The lock, handle, full-length keep, and surface-mounted adjustable hinges are included as standard.
  • You can fasten the hinges to any appropriate masonry surface, or we can supply you with aluminium posts.






Includes the Following Accessories

1 x Lock & Handle (includes 2 x keys)

1 x Full Length Lock Keep

2 x Surface Mounted Adjustable Wall Mounted Hinges

1 x Floor Mounted Hinge






Ordering Sizes

The measurements of the drop-down menu correspond to the actual width and height of the gate. The space you will need for the hinges and the lock is not included.

What Opening Width is Required?

Please use the matrix below to determine your exact opening measurement.

Aluminium gate opening width requirements

900mm Physical Width: The opening between your masonry or posts will need to be 930mm.

1000mm Physical Width: The opening between your masonry or posts will need to be 1030mm.

1100mm Physical Width: The opening between your masonry or posts will need to be 1130mm

1200mm Physical Width: The opening between your masonry or posts will need to be 1230mm

Height Dimensions

The hinges attach to the top and bottom of the vertical hanging stile. As a result, the surface upon which the hinges are mounted must be at least 100mm higher than the actual gate height. If this is not feasible, you must purchase a gate with a lower height or place posts to compensate.






Are Optional Aluminium Posts Required?

You must purchase aluminium supports if you plan to install the gate in a location without an appropriate masonry structure in place. The posts have an attached base plate which enables them to be connected to any solid surface (such as concrete) or submerged into the ground and anchored with concrete.

Post Specification

Profile: 3.5mm thick

Size: 100mm x 100mm x 2400mm

Integral base plate (with fixing holes)

Available in black or anthracite grey

A post cap prevents water ingress.






Do you Need Help & Advice?

Please get in touch with us if you are unsure of what size to purchase, have a query, or need a quote for a made-to-measure size. We will be delighted to assist you.

Made to measure aluminium pedestrian gates are available - Fill in our enquiry form to get a quote






Essential Delivery Information

If you reside in Scotland, don't hesitate to contact us before purchasing the gate, as delivery surcharges will apply to your order (this will differ according to your postcode).‚Äč



Available Powdercoated Paint Colours

Aluminium pedestrian gate colour options

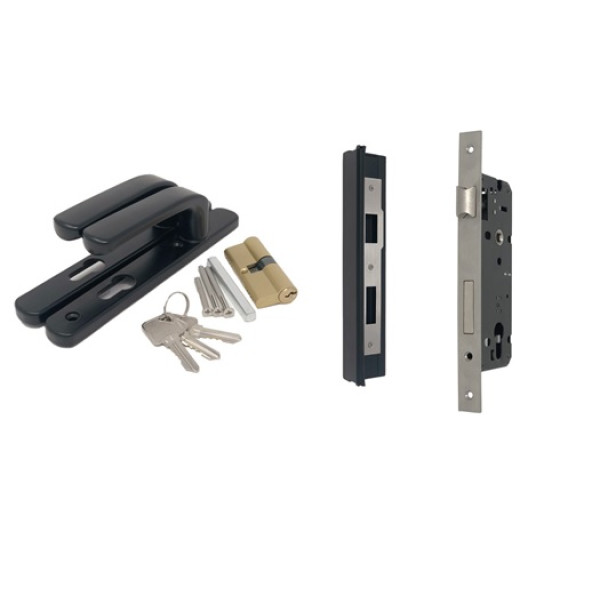

Lock & Handle (included as standard)

Pedestrian gate lockset

Specification

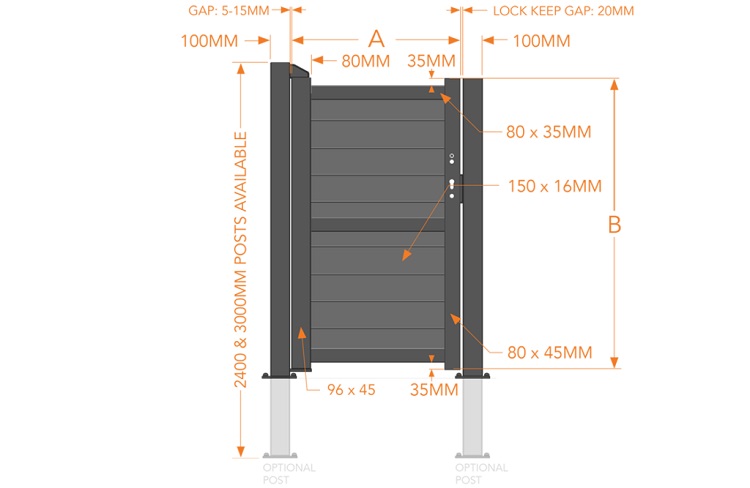

Kensington aluminium pedestrian gate drawing & Specification
