Surrey Aluminium Pedestrian Side Gate | Vertical Board

Surrey Aluminium Pedestrian Side Gate | Vertical Board

The beautiful but functional Surrey Aluminium Pedestrian Gate is available to buy online in a choice of sizes. It has a vertical infill board pattern and a durable contemporary powder-coated paint finish, is exceptional value for money and will make a stunning statement to any property.


The sizes displayed in the drop-down menu are the actual width and height of the gate. We have not included the additional space needed for the hinges, lock plate, and ground clearance. Please refer to the chart in the item's description before purchasing to clarify the specific opening size you require between your brickwork or posts.

Select the Size You Need:

Other Options & Accessories

Choose the Colour:
Do You Need Posts?:

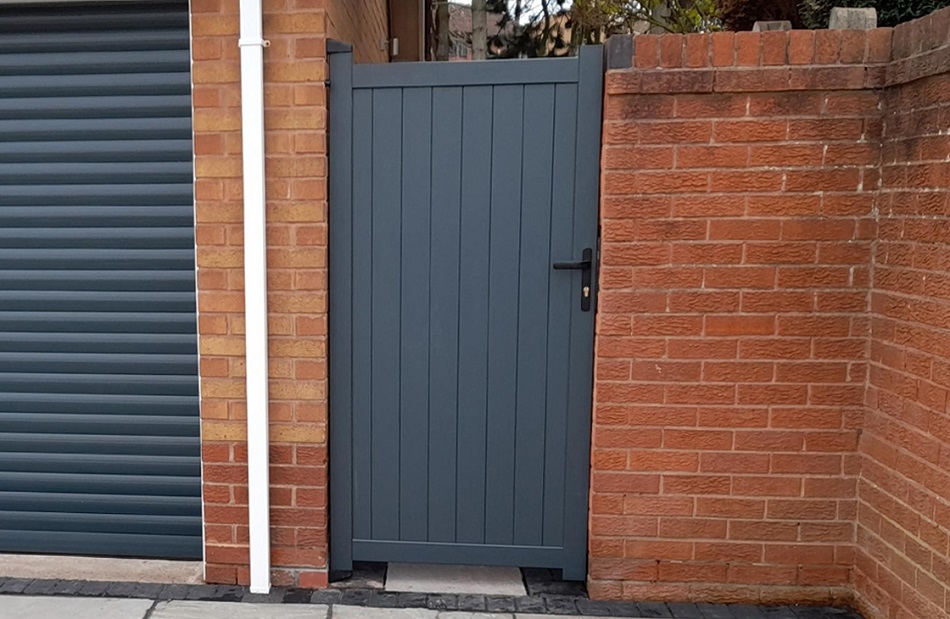

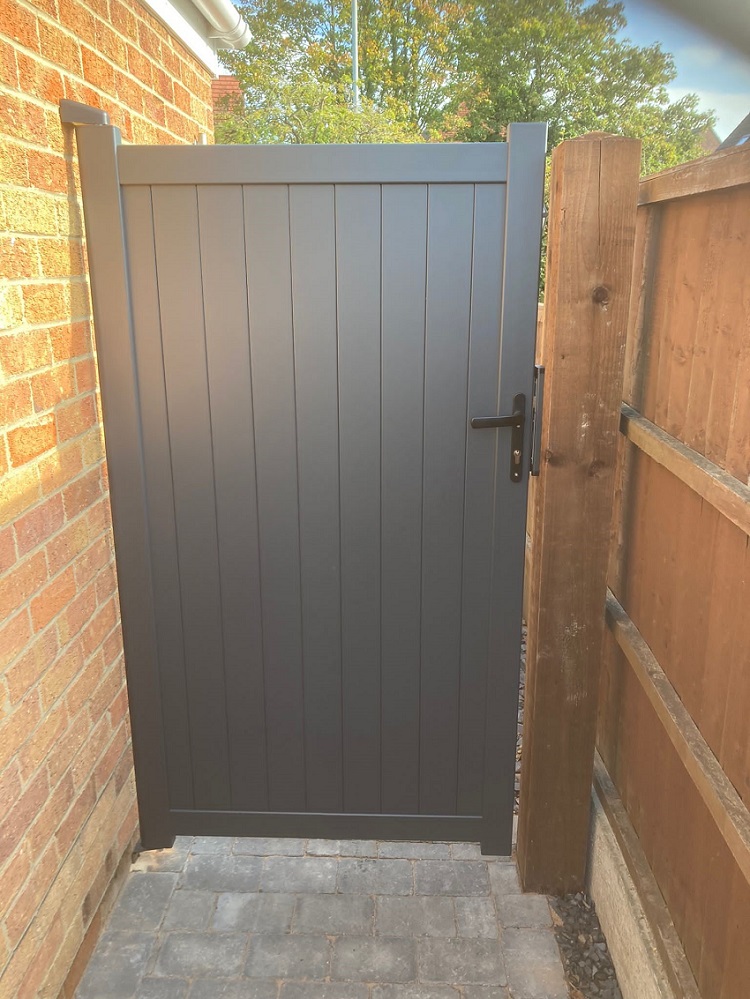

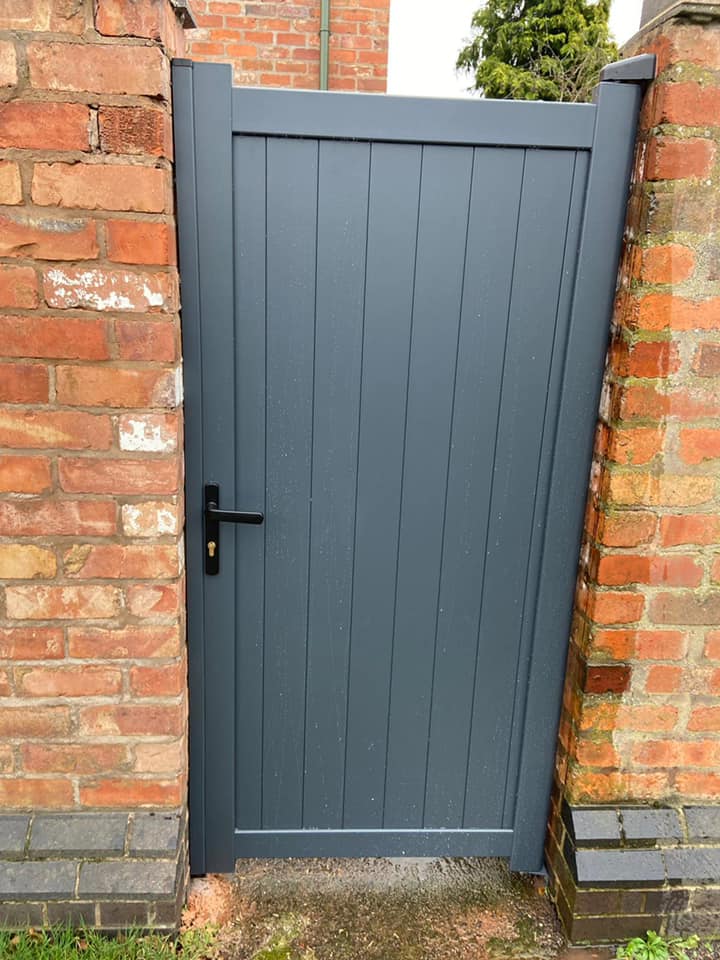

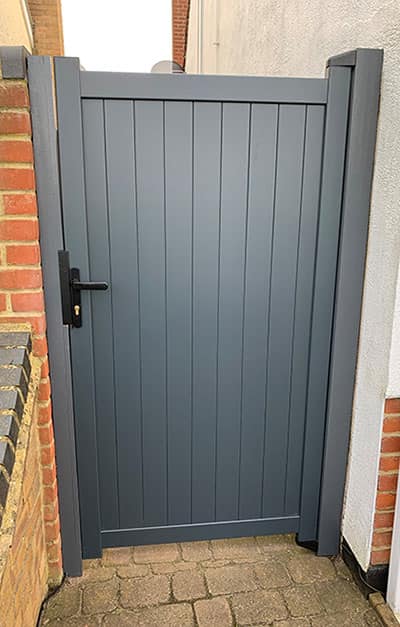

The Surrey Aluminium Pedestrian Gate is an excellent option for any property owner looking to add privacy and security to vulnerable home and garden access points. The gate is entirely aluminium and features vertical infill boards set into a robust framework to ensure strength and stability, whilst the durable powder-coated paint finish keeps the gate looking great for years to come. It is available in a variety of sizes to suit many typical opening widths and benefits from several height options. The Surrey design has an integral lock (with handle and 2 x keys), surface-mounted hinges (2 x wall mounted, and 1 x floor mounted), and a full-length lock keep.

Surrey Aluminium Side Garden Gate Specification

  • Suitable for many types of properties and installation locations.
  • High quality fully aluminium construction.
  • It provides a superior level of aesthetic appeal.
  • Choose between black or anthracite grey powder-coated paint colours.
  • No susceptible to warping or twisting.
  • Available to buy online in a choice of width and height combinations.
  • Straightforward to install.
  • A lock, handle, keep, and surface-mounted hinges are included as standard.
  • You can attach the gate to existing brickwork, or we can supply you with suitable aluminium posts.



Includes the Following Accessories

1 x Lock & Handle (includes 2 x keys)

1 x Full Length Lock Keep

2 x Surface Mounted Adjustable Wall Mounted Hinges

1 x Floor Mounted Hinge



Ordering Sizes

The drop-down menu's dimensions reflect the gate's physical width and height. Not taken into account is the space needed for the hinges and locking mechanism.

What Opening Width is Required?

Please utilise the matrix below to establish the precise opening size you need.

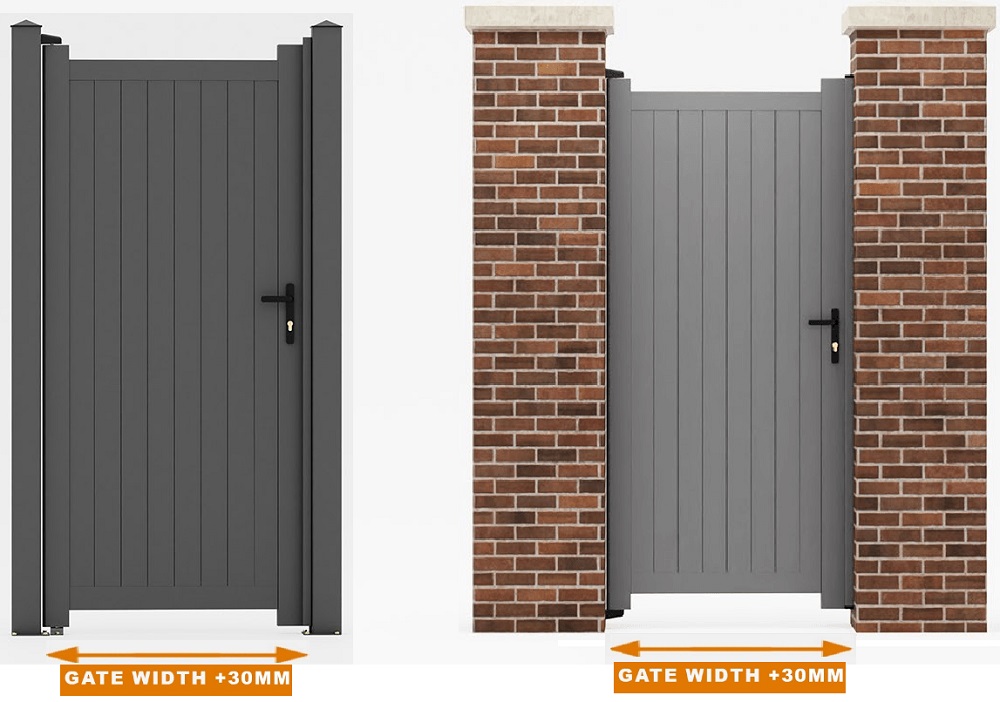

Aluminium gate opening width requirements

900mm Physical Width: The gap between your brickwork or posts will need to be 930mm

1000mm Physical Width: The gap between your brickwork or posts will need to be 1030mm

1100mm Physical Width: The gap between your brickwork or posts will need to be 1130mm

1200mm Physical Width: The gap between your brickwork or posts will need to be 1230mm

Height Dimensions

The hinges fit on the top and bottom of the vertical hanging stile. Consequently, the surface you mount the hinges onto must be a minimum of 100mm taller than the physical gate height. If this is not possible, you will need to order a gate with a shorter stature or install posts to account for this.



Are Optional Aluminium Posts Required?

If you are installing the gate without an appropriate support structure, you must buy aluminium posts. These components have an integral base plate and can be attached to an existing hard surface (such as concrete) or buried into the ground and fixed using concrete.

Post Specification

Profile: 3.5mm thick

Size: 100mm x 100mm x 2400mm

Integral base plate (with fixing holes)

Available in black or anthracite grey

A post cap prevents water ingress.



Do you Need Help & Advice?

If you are unsure what size to order, have a question, or need a quote for a made-to-measure size, please get in touch with us, and we will be happy to help.

Made to measure aluminium pedestrian gates are available - Fill in our enquiry form to get a quote



Essential Delivery Information

If you reside in Scotland, please contact us before buying online, as there will be a surcharge for delivery (this will differ according to your postcode).


Available Powdercoated Paint Colours

Aluminium pedestrian gate colour options

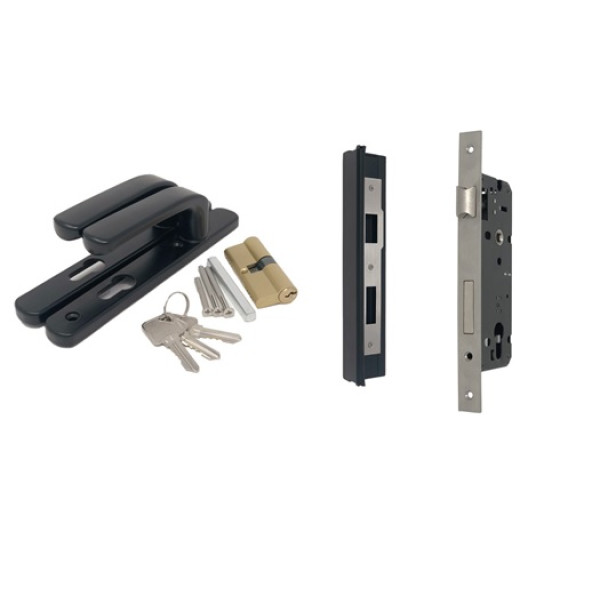

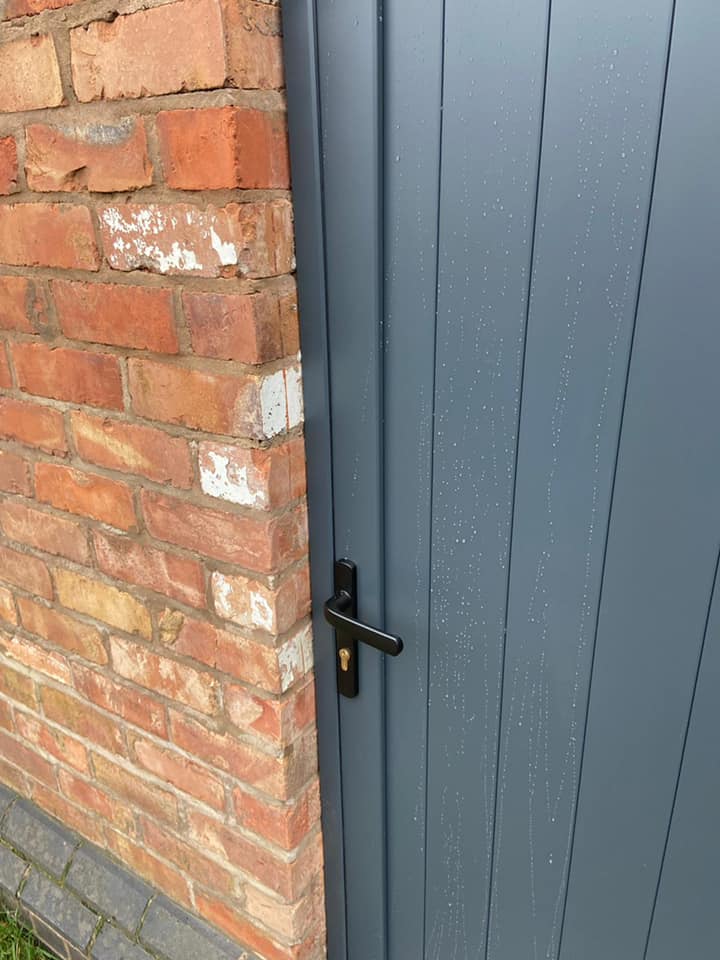

Lock & Handle (included as standard)

Pedestrian gate lockset

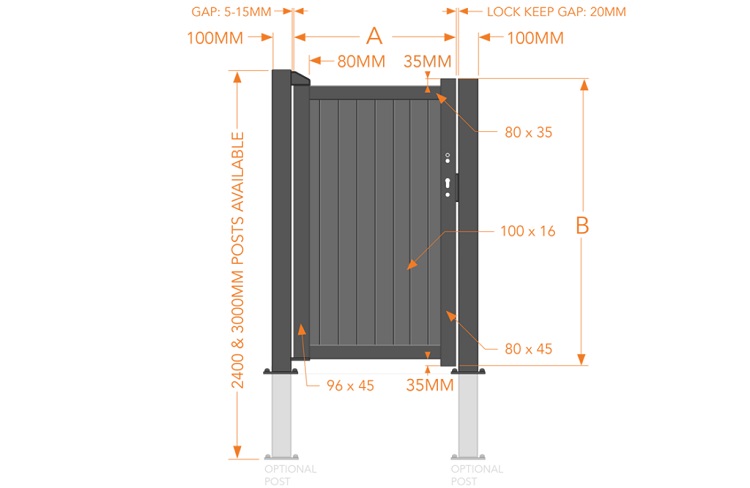

Surrey aluminium pedestrian gate drawing & Specification
