London Aluminium Pedestrian Side Gate | Diagonal Board

London Aluminium Pedestrian Side Gate | Diagonal Board

The London Aluminium Pedestrian Side Gate will make a bold statement at the entrance of any home or garden location and is outstanding value for money. It features contemporary diagonal boarded infill panels, which offer privacy and security and is available to purchase in a wide range of width and height combinations.


Before buying, please refer to the chart in the item's description to determine the precise opening size you require between your brickwork or posts. Please keep in mind that the measurements shown in our dropdown menu are the exact width and height of the gate. These measurements do not include the extra space needed for hinges, a lock plate, and ground clearance.

Please allow approximately 4 weeks lead time for delivery of this product.

Select the Size You Need:

Other Options & Accessories

Choose the Colour:
Do You Need Posts?:

The London Aluminium Side Gate is an outstanding choice for any property owner looking to add privacy and security without compromising on the aesthetic appeal of the installation location. The gate benefits from a visually appealing diagonal infill panel for a contemporary appearance, whilst the integral lock makes it easy to secure the entrance. It is available in black or anthracite grey powder-coated paint colours with numerous width and height configurations possible. The London design is a perfect option for DIY installation thanks to the easy-to-install surface-mounted hinges, which can be mounted directly to existing masonry surfaces or, where required, can be attached to new aluminium posts.

London Aluminium Side Gate Specification

  • Suitable for countless styles of properties and installation locations, making it the perfect addition to any home.
  • The framework and infill boards are made from aluminium, resulting in reliable durability and superior resistance to rust or corrosion.
  • High-quality powder-coated paint finishes are available in black or anthracite grey.
  • Not liable to warping or deforming.
  • A selection of size configurations is available to buy online.
  • Includes a pair of surface-mounted wall hinges and one floor-mounted hinge bracket.
  • The integral lock (with a handle) and full-length lock plate make securing the gate fast and simple.
  • Can be installed onto any appropriate masonry surface, or you can purchase optional aluminium posts if no existing support structure is present.



Includes the Following Accessories

1 x Lock & Handle (includes 2 x keys)

1 x Full Length Lock Keep

2 x Surface Mounted Adjustable Wall Mounted Hinges

1 x Floor Mounted Hinge



Ordering Sizes

The dropdown menu dimensions correlate to the physical width and height of the gate. The additional space demanded to fit the hinges and latch is omitted.

What Opening Width is Required?

Please use the matrix below to calculate the precise opening size you need to have available between your support structure.

Aluminium gate opening width requirements

900mm Physical Width: The opening between your masonry or posts will need to be 930mm.

1000mm Physical Width: The opening between your masonry or posts will need to be 1030mm.

1100mm Physical Width: The opening between your masonry or posts will need to be 1130mm

1200mm Physical Width: The opening between your masonry or posts will need to be 1230mm

Height Dimensions

The hinges connect to the top and underside of the vertical hanging stile. Consequently, your wall or posts must be at least 100mm taller than the physical gate height. If this is not viable, you must buy a gate with a smaller size or install posts to compensate.



Are Optional Aluminium Posts Required?

You must purchase aluminium posts if the gate is not going to be attached to a solid masonry structure. These components can be sunk into the ground and secured with concrete or bolted down to the floor or any other solid surface so your gate can be mounted correctly and securely.

Post Specification

Profile: 3.5mm thick

Size: 100mm x 100mm x 2400mm

Integral base plate (with fixing holes)

Available in black or anthracite grey

A post cap prevents water ingress.



Do you Need Help & Advice?

Don't hesitate to contact us if you are unsure of what size to purchase, have any queries, or need us to quote for a made-to-measure size. We will be delighted to assist.

Made to measure aluminium pedestrian gates are available - Fill in our enquiry form to get a quote


Available Powdercoated Paint Colours

Aluminium pedestrian gate colour options

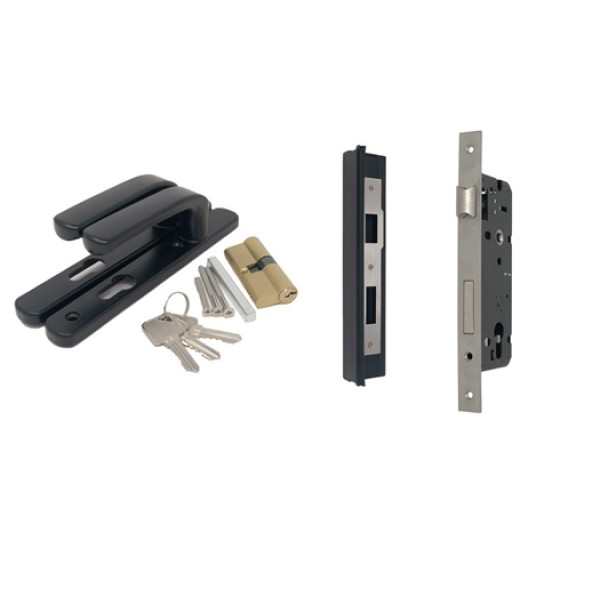

Lock & Handle (included as standard)

Pedestrian gate lockset

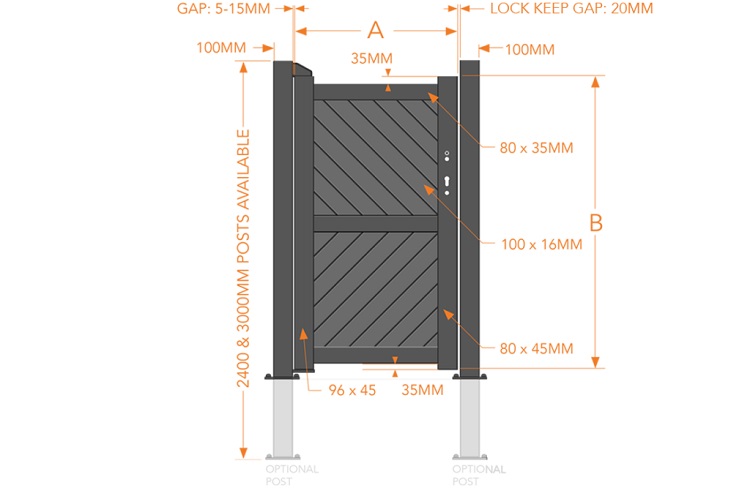

London aluminium pedestrian gate drawing & Specification
