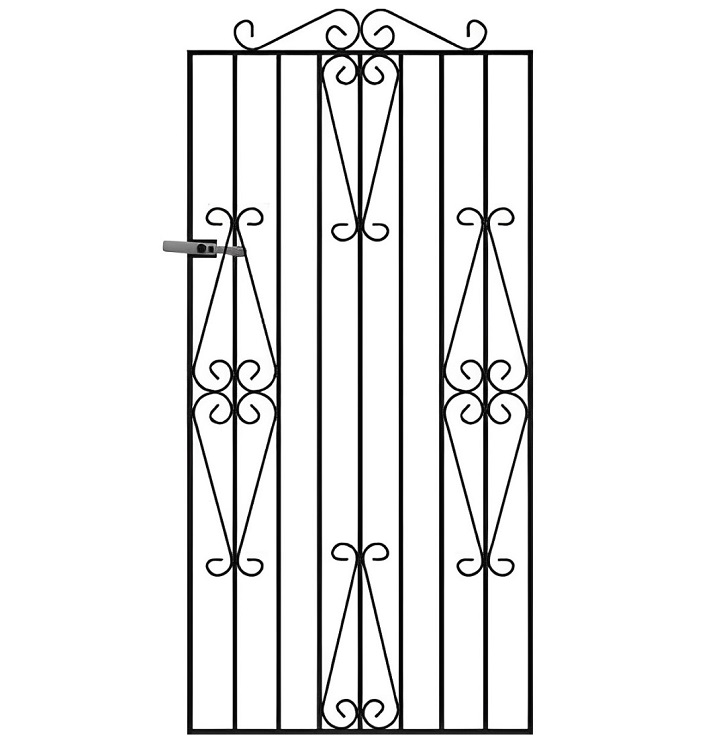

Winchester Wrought Iron Style Metal Side Gate

Winchester Wrought Iron Style Metal Side Gate

The Winchester Metal Side Gate is an excellent option if you are looking for an affordable yet effective way to secure any pedestrian entrance around the home and garden. Handmade in the UK, the gate benefits from a solid steel frame and features several ornate wrought iron scrolls set within the infill bars for a pleasing appearance.

Please allow approximately 4 - 5 weeks lead time for delivery of this product.

Choose the Size You Need:

Other Options & Accessories

Hinge Post:
Latch Post:

The Winchester Wrought Iron Style Metal Side Gate is handcrafted from durable steel components and is outstanding value for money. Featuring ornate scrollwork, this timeless design will complement most residential properties. Available to order in a selection of sizes, the gate is supplied primed black and includes an easy-to-install fitting pack making it perfect for DIY installations.

Winchester Side Gate Specification

  • Suitable for numerous residential applications.
  • Provides privacy and security at a competitive price.
  • Made in the UK.
  • 20mm x 8mm framework, 10mm infill bars, and 10mm x 3mm scrollwork.
  • Includes surface-mounted hinges, a universal latch and a wall-mounted receiver plate.
  • The gate can be installed as left or right-hand hanging.
  • The steel surfaces are primed black with an undercoat. All exposed parts must be treated with high-quality paint to provide adequate protection against rust.


Optional Finish

We can offer a zinc-plated (electro-galvanised) and black powder-coated paint finish for an additional charge. Please email us for more information.


Height (after installation)

  • 1830mm (6ft) + top scrolls mounted above the framework



Ordering Information

What Does the "Fits Opening" Measurement Indicate in the Menu?

This measurement is the opening size you will require between your posts or brickwork. The space taken up by the hinges and latch is already incorporated into these dimensions, so you do not need to make additional allowances for these components. Read our measuring guide if you need further help to understand what this means.

What Does "Height (after installation)" Mean?

This dimension includes an allocation of 50mm for ground clearance. It is calculated from the floor to the top of the framework. The scrolls mounted above this point are not included in this measurement.

Click Here to View the Measuring Guide



Do you Need Help or Technical Support?

Read the measuring guide, or fill in our contact form, and we will happily answer your queries. Alternatively, the frequently asked questionsordering guide and installation advice pages provide additional information about our products.

Made to Measure Metal Gates

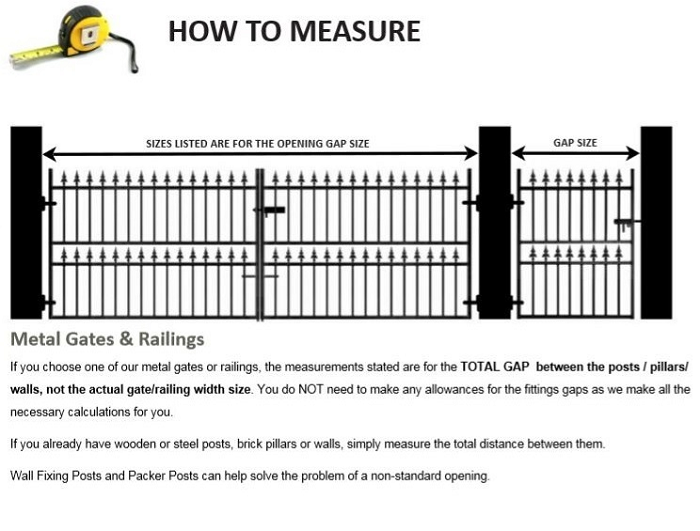

Winchester side gate measuring diagram

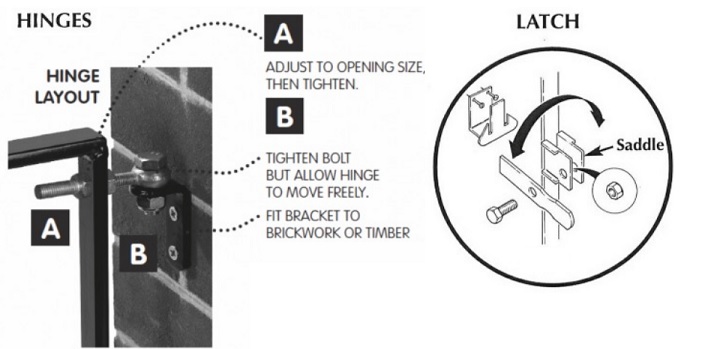

 Winchester side gate adjustable hinge and latch diagram
