Clifton Arched Wrought Iron Style Metal Side Gate


Clifton Arched Wrought Iron Style Metal Side Gate

The Clifton Arched Wrought Iron Style Side Gate is handcrafted in the UK and available in various sizes. Suitable for a range of pedestrian entrances within a residential environment, it will provide you with privacy and security at an affordable price. The gate features an arched top rail, ornate scrollwork, a fully welded steel frame and includes the hinges and a latch mechanism as standard.

Delivery:
Please allow approximately 6 weeks lead time for delivery of this product.

Choose the Size You Need:

Other Options & Accessories

Hinge Post:
Latch Post:

Handmade in the UK, the Clifton Arched Metal Side Gate is fabricated from solid steel components and has a traditional appearance. The ornate wrought iron style scrollwork and an arched top rail create an elegant overall appearance that will suit various property types. It is available to buy online in a choice of sizes to suit most residential entrances and includes a pair of easy-to-install adjustable hinges as standard.

Clifton Arched Side Gate Specification

  • Handmade in the UK.
  • Suitable for any home and garden design.
  • 20mm x 8mm framework, 10mm round metal infill bars and 10mm x 3mm scrollwork.
  • Includes a pair of adjustable hinges and a universal latch (can be secured with a padlock).
  • The universal latch design allows for left or right-hand hanging.
  • Primed black (undercoat). To protect against steel corrosion, you must paint the gate before installation.



Optional Finish

We can offer a zinc-plated (electro-galvanised) and black powder-coated paint finish for an additional charge. Please email us for more information.



Height (after installation)

  • "Fits Opening" 762mm (2ft 6") | Height = 1701mm
  • "Fits Opening" 838mm (2ft 9") | Height = 1746mm
  • "Fits Opening" 914mm (3ft) | Height = 1784mm
  • "Fits Opening" 991mm (3ft 3") | Height = 1810mm
  • "Fits Opening" 1067mm (3ft 6") | Height = 1861mm




Ordering Information

What Does the "Fits Opening" Measurement Indicate?

This measurement represents the width of the opening between walls or other supports. The space taken up by the hinges and latch are included in these measurements, so no additional allowances are necessary. If you need additional information, read our measuring guide or contact us before ordering.

What Does "Height (after installation)" Mean?

This measurement includes an allowance of 50mm for ground clearance. It is measured from the floor to the top of the arch.

Click Here to View the Measuring Guide






Do You Need Help Before Placing an Order Online?

If you have any questions about this product, refer to the measuring guidefrequently asked questions and ordering guide or contact us for advice.

Made to Measure Metal Gates






Also Available to Buy Online in the Clifton Wrought Iron Style

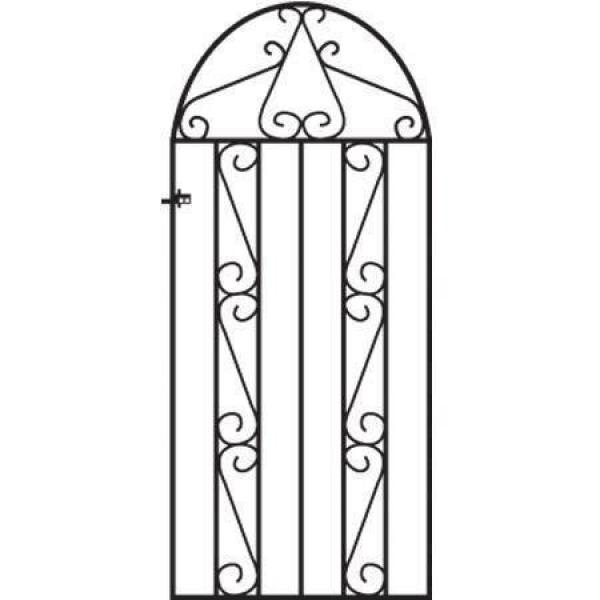

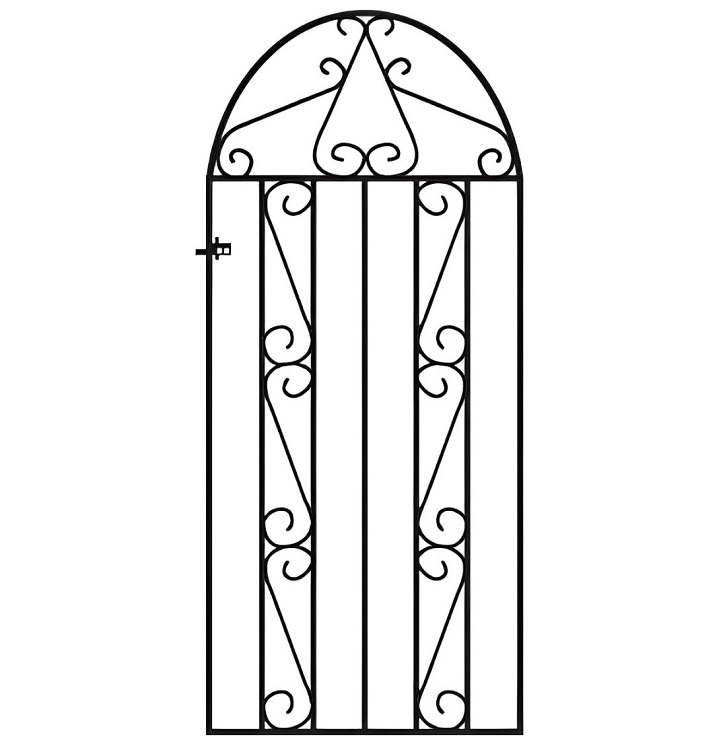

Clifton arched side gate measuring diagram

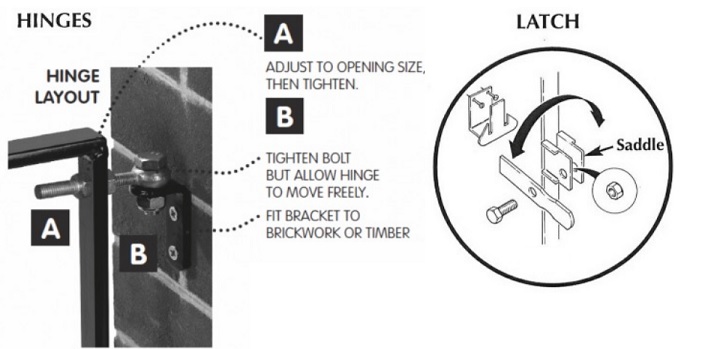

 Clifton arched side gate adjustable hinge and latch diagram
