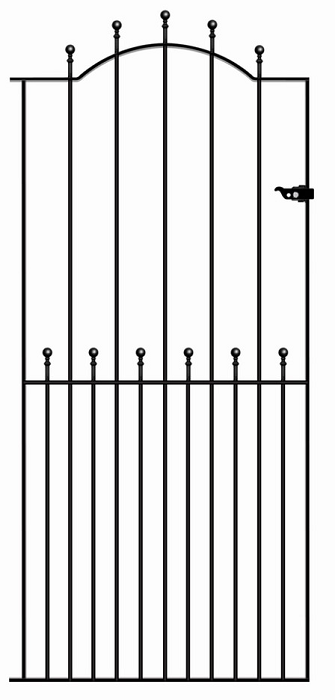

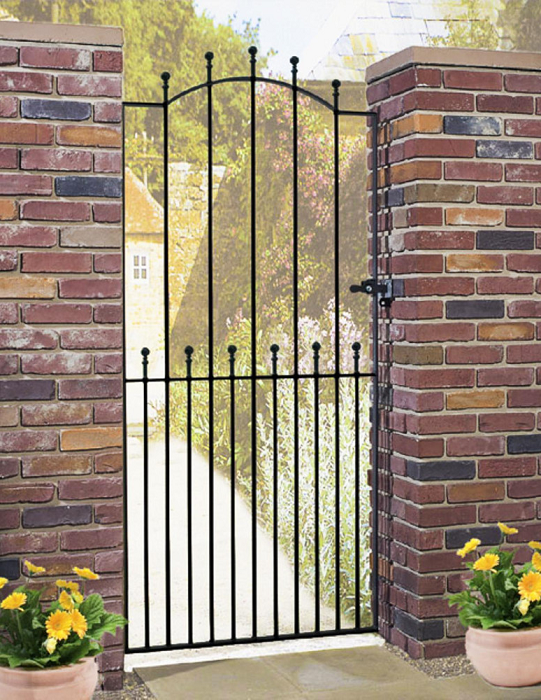

Manor Wrought Iron Style Metal Side Gate

Manor Wrought Iron Style Metal Side Gate

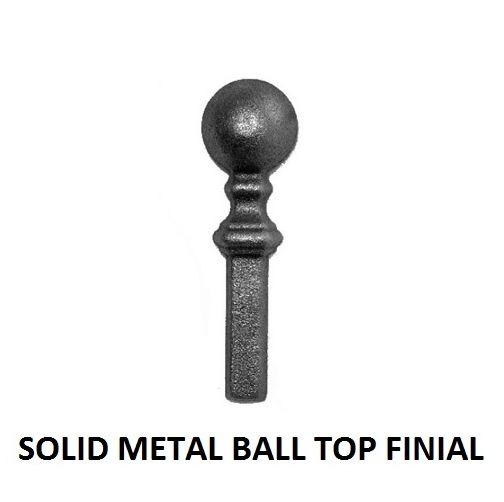

The Manor Metal Side Gate is ideal for any home and garden space needing added security. Available in a selection of width options, it features a welded solid steel framework, a shallow arch top and a double row of ball top finials. For added practicality, the bottom half of the gate includes dog bars, making it the perfect option for keeping your pets within the boundary of your property.

Choose the Size You Need:

Other Options & Accessories

Metal Post:

Constructed from high-grade steel components, the Manor Metal Side Gate features a shallow arched top and timeless ball top finials to create a simple, understated appearance. Suitable for old and new properties, this universally appealing garden gate is attractive and effective at providing security to your home and garden.

Manor Wrought Iron Style Side Gate Specification

  • Available in a range of sizes to suit many popular applications.
  • Traditional wrought iron style design.
  • 25mm x 10mm metal frames and 12mm infill bars.
  • Supplied with a pair of fixed hinges and a universal latch (can be secured with a padlock).
  • Suitable for left or right-hand hanging.
  • The Manor metal side gate is zinc-plated (electro-galvanised) and powder-coated black.


Physical Height

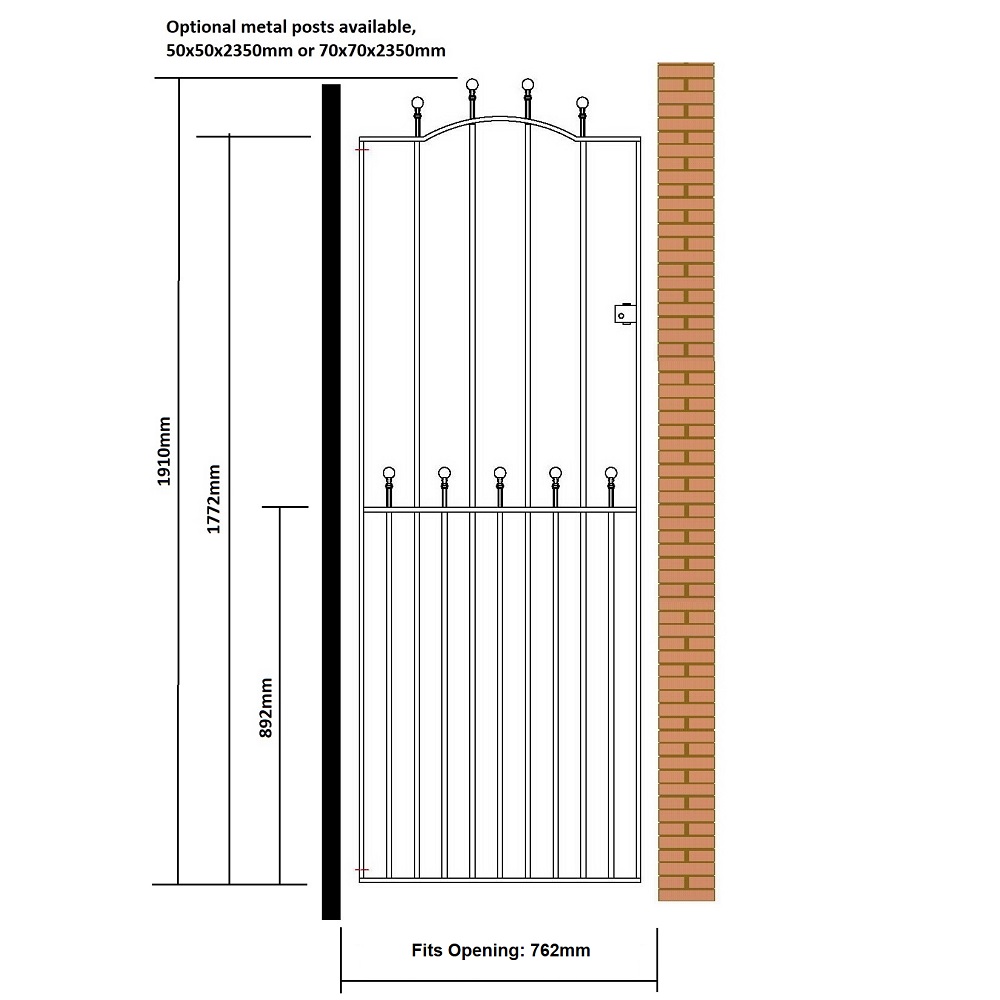

  • The option that "Fits Opening" 762mm (2ft 6") has a Physical Height of 1910mm
  • The option that "Fits Opening" 914mm (3ft) has a Physical Height of 1930mm

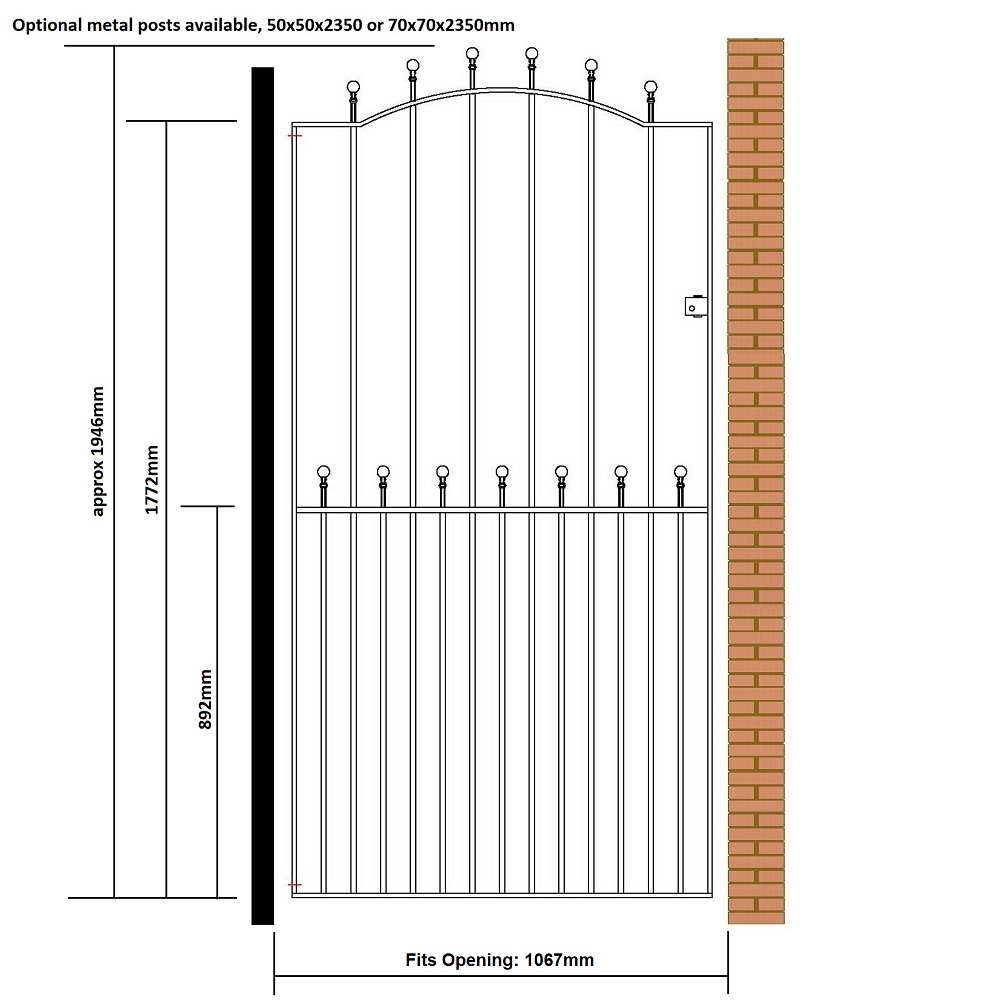

  • The option that "Fits Opening" 1067mm (3ft 6") has a Physical Height of 1940mm

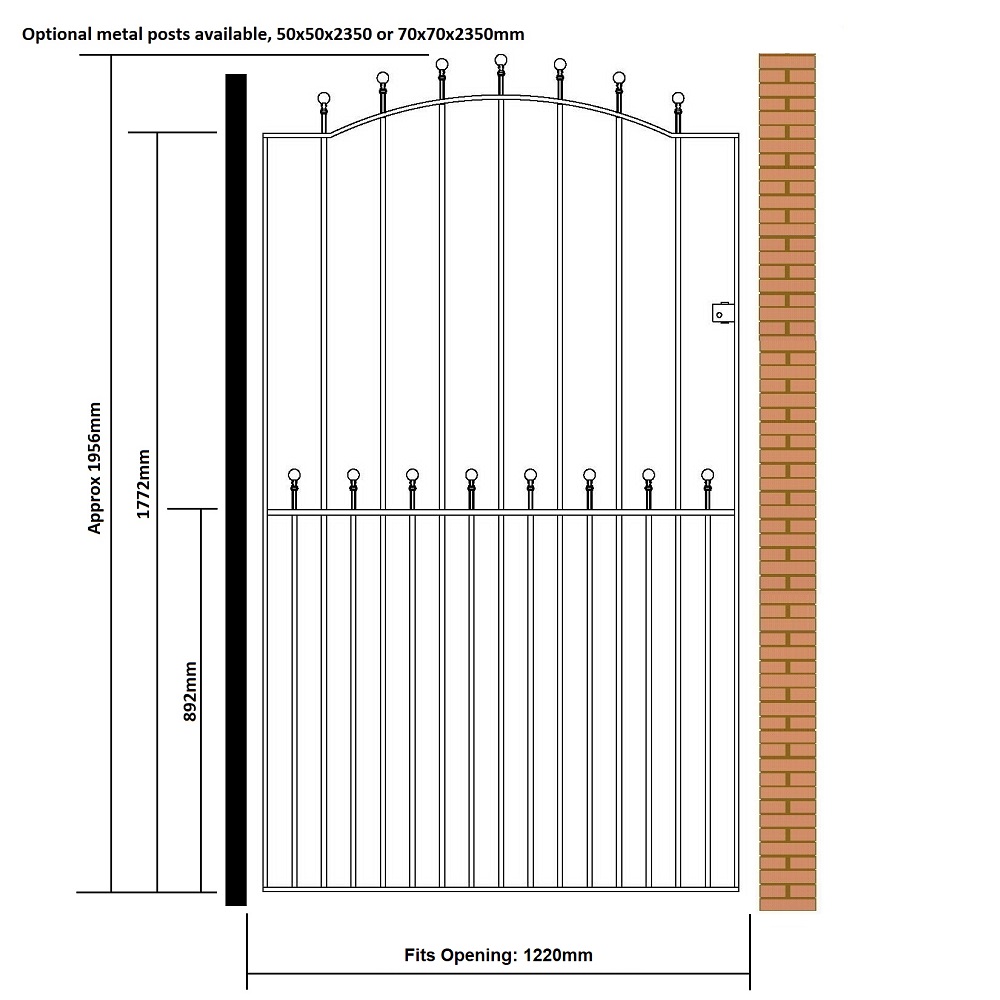

  • The option that "Fits Opening" 1220mm (4ft) has a Physical Height of 1955mm



Ordering Information

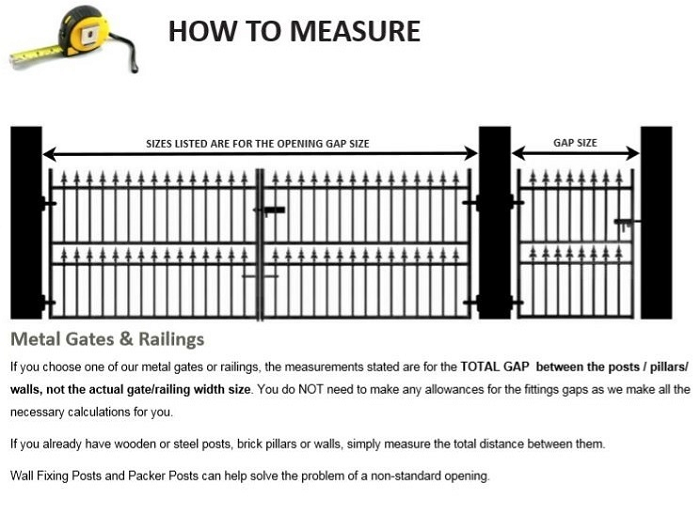

What Does the "Fits Opening" Measurement Indicate?

Please be aware that the "fits opening" measurements in the drop-down menu are for the gap required between your walls, existing posts, or other support structures. The hinge and latch components are already included in these dimensions, so no extra allowance is necessary for these parts. If you need additional clarification, please consult our measuring guide or contact us for help before making your purchase.

What Does "Physical Height" Mean?

The measurement refers to the height of the metal gate, from the bottom of its frame to the top of the highest finial. It is important to note that this dimension does not take into account the ground clearance required when fitting the product.

Click here to View the Measuring Guide



Are you Looking for Advice Before Buying Online?

If you require assistance determining the appropriate gate size to order, we recommend that you refer to our measuring guide or for general queries regarding the ordering process view our ordering guide and frequently asked questions page. Alternatively, if you need further guidance or have any questions unanswered, please get in touch with Metal Gates Direct by filling in our enquiry form; our advisors will be happy to assist you.

Made to Measure Metal Side Gates



Also Available to Buy Online in the Manor Wrought Iron Style

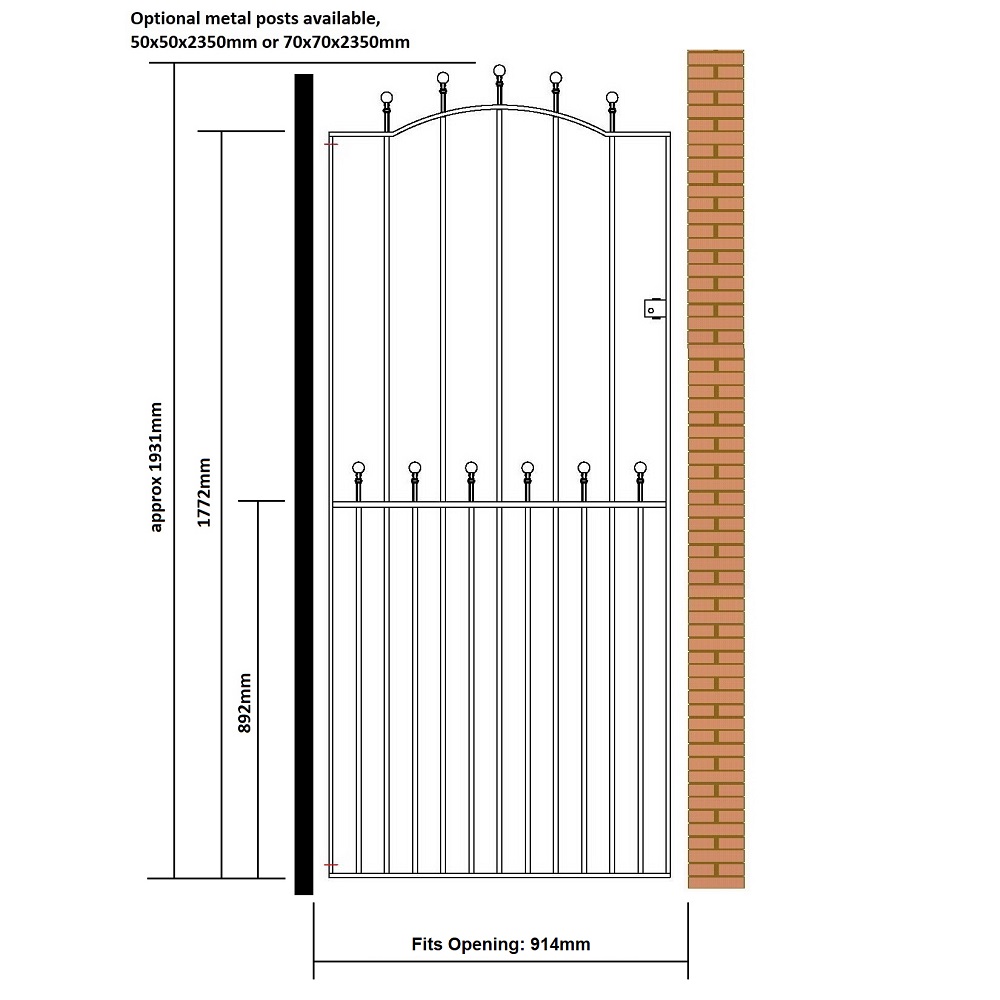

Manor side gate measuring diagram

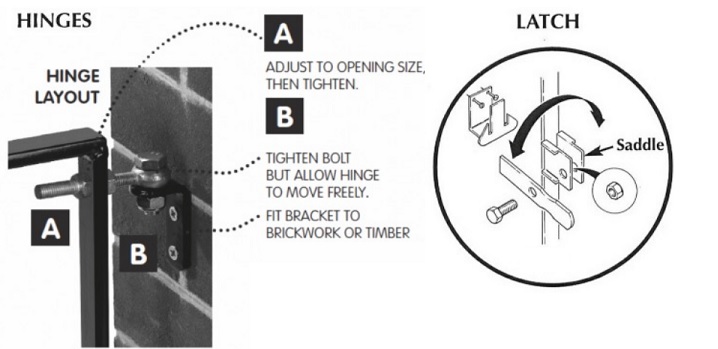

Manor side gate adjustable hinge and latch diagram

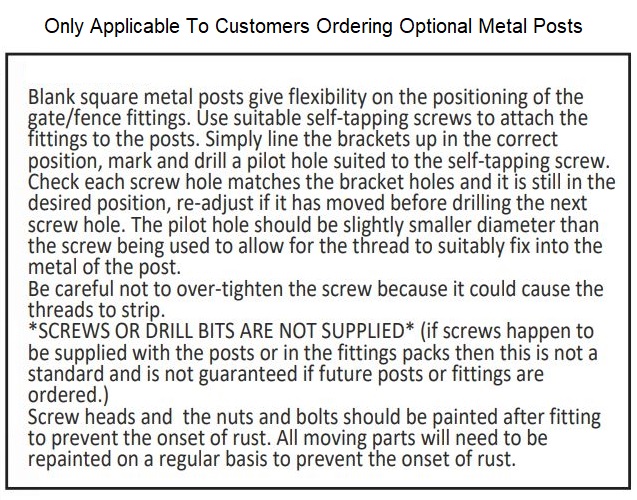

Metal post fixing information
