Wentworth Aluminium Driveway Gates | Arched Top & Vertical Board

Wentworth Aluminium Driveway Gates | Arched Top & Vertical Board

The Wentworth Aluminium Driveway Gates with an arch top profile are a stylish and secure addition to any property. With their vertical infill boards and sturdy construction, they offer both privacy and security. The contemporary black or anthracite grey powder-coated paint finish ensures a modern look that will enhance the curb appeal of your property. These double gates are available in widths and heights to suit your specific requirements. You can easily order them online and enjoy their affordability without sacrificing style or quality.


Please be aware that the width dimensions displayed in the drop-down menu denote the total physical size of a pair of gates. Consequently, it's essential to make sure the opening size between your brickwork or posts is measured correctly before purchasing. You will need to factor in the additional space required for the hinges, locks, and ground clearance; therefore, we recommend that you refer to the chart in the item's description, which will provide you with the precise opening size you need to ensure a proper fit.

Choose the Size You Need (supplied as a pair of gates):

Other Options & Accessories

Choose the Colour:
Do You Require a Handle & Lock?:
Do You Require a Drop Bolt?:
Do You Need Posts?:

The Wentworth Aluminium Driveway Gates are an outstanding choice for those who want an innovative, low-maintenance security solution for their property. The powder-coated finish, arched design, and vertical board infills offer a modern and visually appealing look that can complement diverse property styles in the UK. The gates are suitable for DIY installation and include floor-mounted and surface-mounted wall hinges making installation straightforward. Optional accessories, such as the integrated lock and in-ground drop bolts, can provide extra security.

Wentworth Arched Aluminium Double Driveway Gates Specification

  • The design of the arched top can complement various properties, regardless of architectural style or aesthetic.
  • Provides privacy and security benefits that can help keep unwanted visitors out of the property.
  • The Wentworth design offers good value for money compared to similar products.
  • Available to buy online in a black and anthracite grey high-quality powder-coated paint finish.
  • The aluminium construction is lightweight, durable and capable of withstanding exposure to various climate conditions, such as rain, wind, and sunlight, without deteriorating or corroding.
  • You can choose different width and height configurations, allowing customers to choose from various sizes to find the best fit for their needs.
  • We include two pairs of surface-mounted wall hinges and one pair of floor-mounted hinges to allow an installation method that best suits your site layout.
  • A range of optional accessories is available to enhance the gate's functionality.
  • The hinge system is adaptable and can be fastened to any suitable masonry surface that can support the weight of the gates. The brackets can be mounted onto various surfaces, such as brick, stone, or concrete. Alternatively, optional aluminium posts are available, allowing them to be mounted without needing a supporting wall or structure.



Includes the Following Accessories

4 x Surface Mounted Adjustable Wall Hinges

2 x Floor Mounted Hinges



Ordering Sizes

Customers should consult the sizing matrix below to determine the exact opening size needed between your walls or posts. These dimensions provide precise measurements that consider the gates' physical width and the spacing required for the hinges. If you have questions or problems selecting the proper size, please complete the enquiry form for further guidance and support.

What Opening Width is Required?

Please utilise the table below to establish the precise opening size you need.

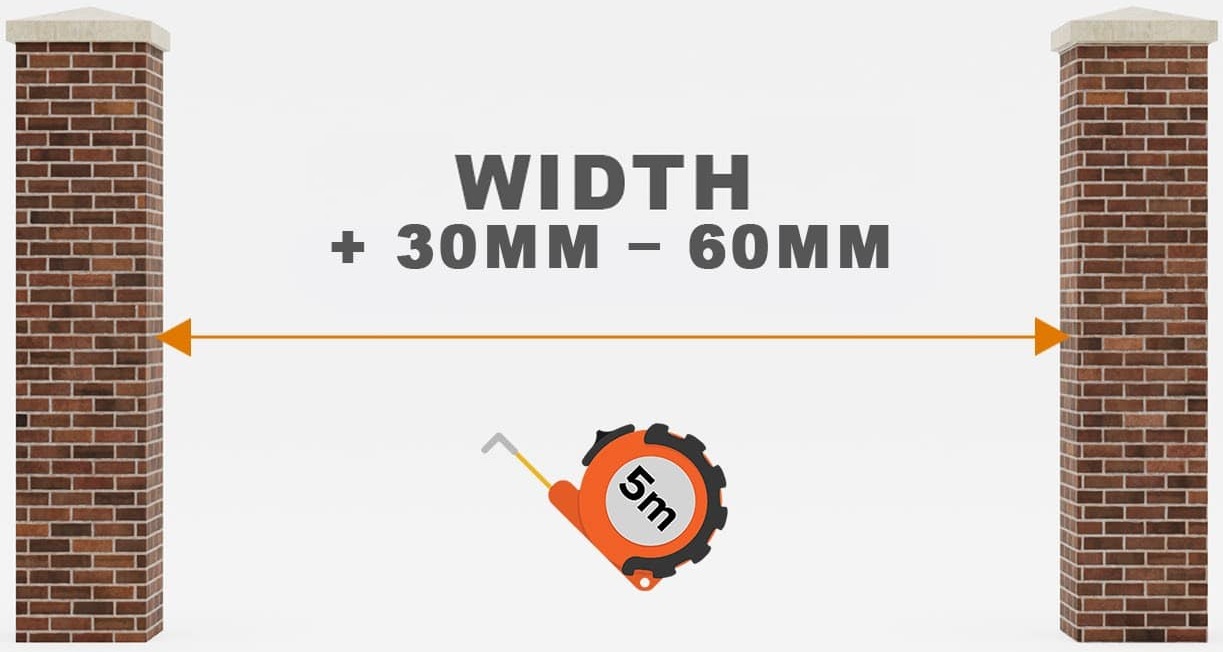

Aluminium driveway gates ordering width diagram

3000mm Physical Width: Your opening must measure between 3030mm - 3060mm.

3250mm Physical Width: Your opening must measure between 3280mm - 3310mm.

3500mm Physical Width: Your opening must measure between 3530mm - 3560mm.

3750mm Physical Width: Your opening must measure between 3780mm - 3810mm.

4000mm Physical Width: Your opening must measure between 4030mm - 4060mm.

We recognise the need for custom sizing options; however, we cannot offer the Wentworth design in a made-to-measure size. If you require a non-standard width, we recommend you look at the Surrey, London and Kensington designs.

Height Dimensions

Measuring the height of walls or posts before placing your order is crucial to ensure you have the correct elevation for your location. To accommodate the hinges' placement, you must ensure that each wall or post is at least 100mm (4 inches) higher than the actual height of the gates.

You have two choices if your walls or supports need to be taller to fit the hinge height.

1) You must buy a smaller size that suits the height of the wall or posts.

2) Utilise the optional posts to make up for any height discrepancies.



Are Optional Aluminium Posts Required?

Our optional universal aluminium posts provide greater flexibility and convenience, enabling installation without solid masonry structures. You can either bolt them down to the ground using appropriate mechanical fixings or set them into the ground and secure them with concrete.

Post Specification

Profile: 3.5mm thick

Size: 150mm x 150mm x 2400mm

Integral base plate (with fixing holes)

Available in black or anthracite grey

A post cap prevents water ingress.



Do you Need Help & Advice?

Customer satisfaction is important to us; therefore, we advise you to contact us if you have any queries or worries about measurement or fit. We can ensure you have the right products for your application and give you detailed advice.



Essential Delivery Information

Due to the additional processing needed for transporting goods to Scotland, there is a surcharge for these deliveries. Before placing an order, buyers in this area should contact us to obtain the extra costs.


Available Powdercoated Paint Colours

Aluminium driveway gates colour chart

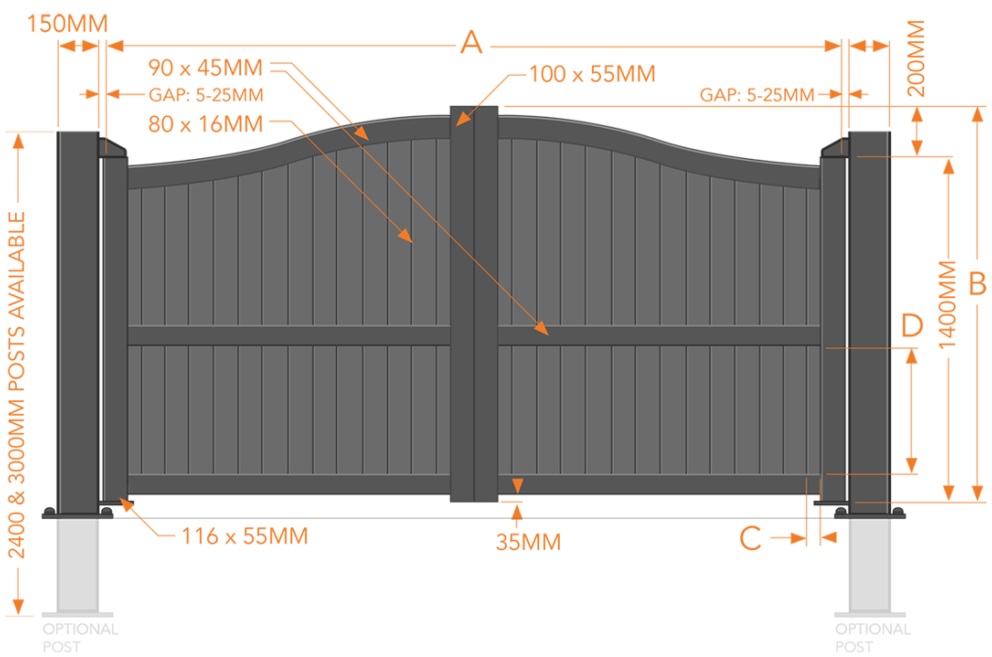

Wentworth arched aluminium driveway gates drawing & specification

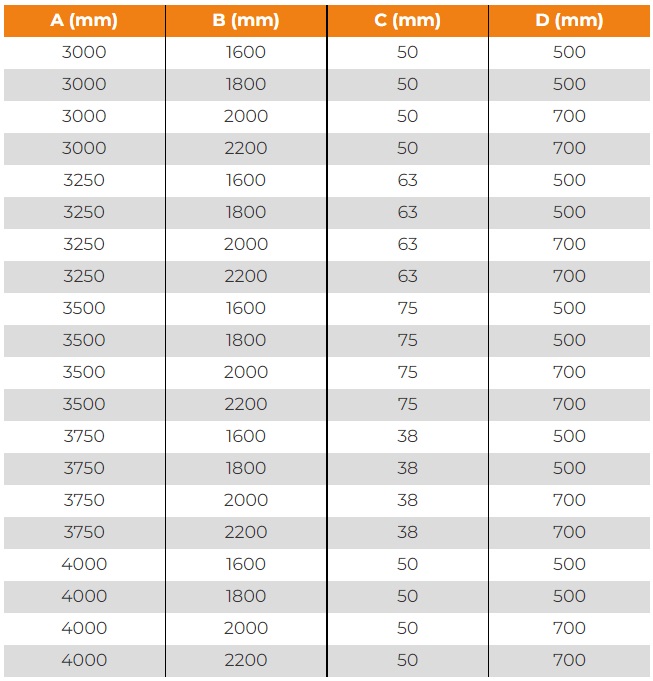

Wentworth driveway gates size options

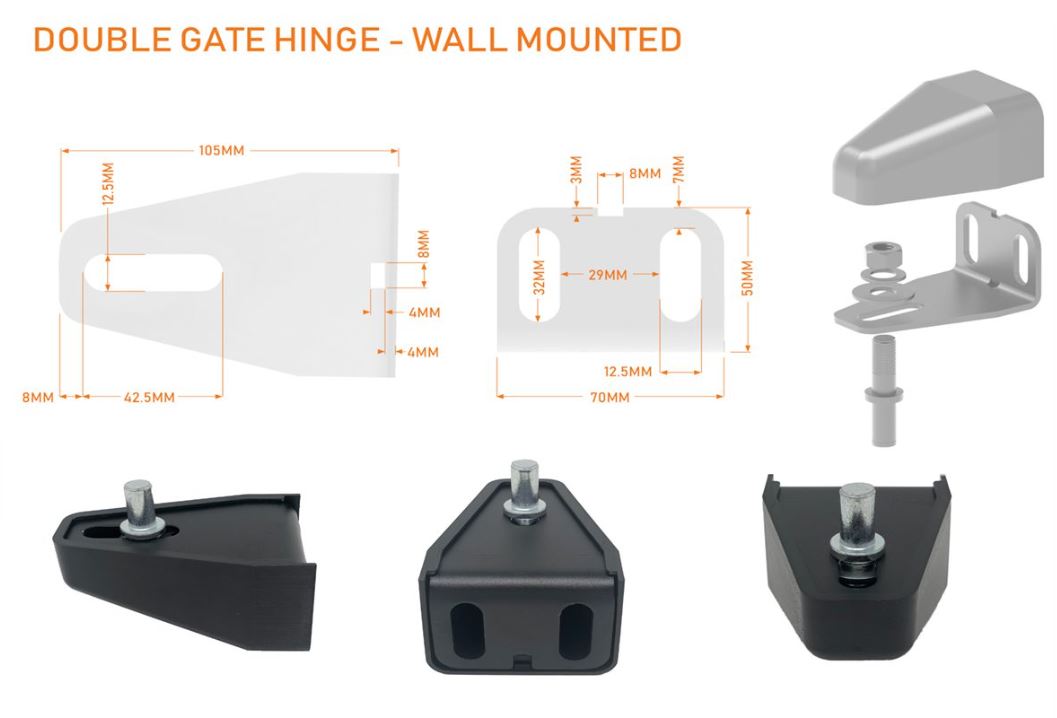

Wall mounted hinges

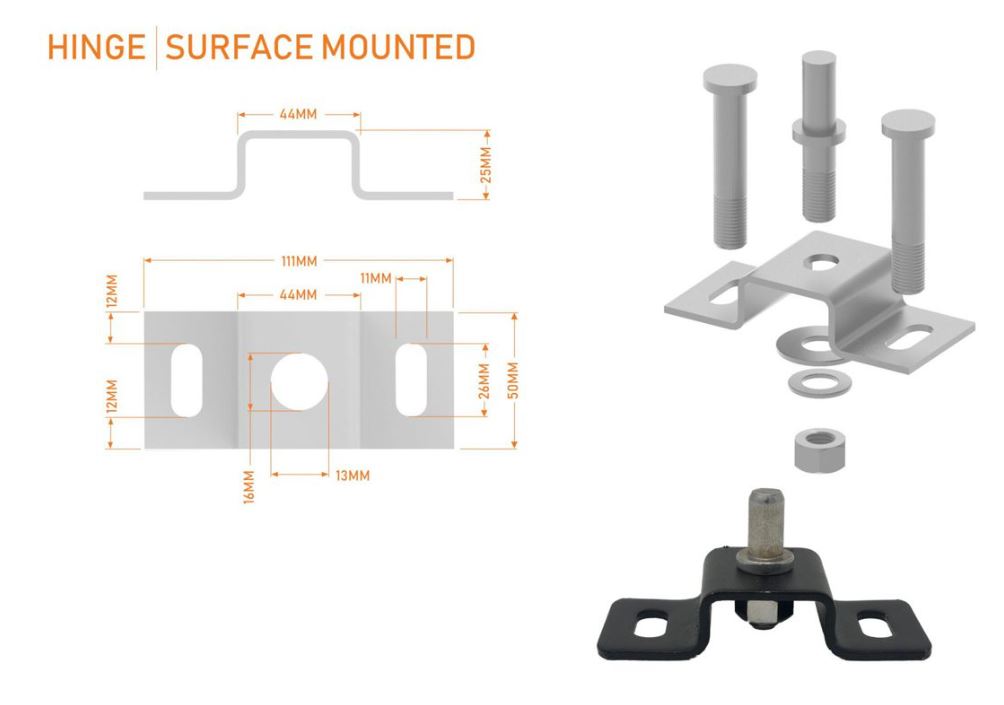

Floor mounted hinge layout
