London Aluminium Driveway Gates | Diagonal Board

London Aluminium Driveway Gates | Diagonal Board

The London Aluminium Driveway Gates are an excellent option for those looking for a modern and stylish solution for the main entrance to their property. The diagonal infill board adds an attractive feature, whilst the various width and height options make it easy to find a suitable fit for your space. Additionally, they offer privacy and protection benefits, making them a practical choice and are considered exceptional value for money, meaning they are a cost-effective option for a budget-conscious property owner looking to get the maximum return on their investment.


The sizes listed under the dropdown menu only refer to the physical width and height of the gates and do not account for the extra space required for hinges, locks, and ground clearance. Customers need to refer to the matrix provided in the item's description to establish they have the correct opening width between their brickwork or posts to accommodate the gates with all necessary hardware.

Please allow approximately 4 weeks lead time for delivery of this product.

Choose the Size You Need (supplied as a pair of gates):

Other Options & Accessories

Choose the Colour:
Do You Require a Handle & Lock?:
Do You Require a Drop Bolt?:
Do You Need Posts?:

The London Aluminium Driveway Gates are an excellent option for those looking for a modern, low-maintenance security solution for their property. The powder-coated finish in black or anthracite is visually appealing. It adds an extra layer of protection against the elements. The diagonal board infill design adds a contemporary touch that can complement various UK property styles.

London Aluminium Double Driveway Gates Specification

  • Whether you have a traditional, modern, or minimalist style home, the diagonal board infill arrangement can add a stylish, contemporary statement to your property.
  • The clean lines and sleek finish can provide an attractive addition to your driveway while offering privacy and security benefits.
  • Black and anthracite grey high-quality powder-coated paint finishes offer excellent durability and resistance to scratches and wear.
  • The aluminium construction is resistant to weather and corrosion whilst robust and capable of withstanding heavy use.
  • Select from width and height configurations to suit your opening size.
  • Supplied with two pairs of surface-mounted wall hinges and one pair of floor-mounted hinges.
  • Optional accessories are available.
  • The hinge systems are adaptable and can be fastened to any suitable masonry surface that can support the product's weight. Alternatively, optional aluminium posts are available, meaning the product can be mounted without a supporting wall or structure.



Includes the Following Accessories

4 x Surface Mounted Adjustable Wall Hinges

2 x Floor Mounted Hinges



Ordering Sizes

You should consult the sizing matrix provided below to determine the exact aperture size you need between your walls or posts. These measurements take into account the physical width of the gates as well as the spacing required for the hinges. If you have any questions or concerns about selecting the appropriate size, please complete our enquiry form for further guidance and support. We will happily provide you with more detailed information and assistance in choosing the right size for your needs.

What Opening Width is Required?

Please utilise the table below to establish the precise opening size you need.

Aluminium driveway gates ordering width diagram

3000mm Physical Width: Your opening must measure between 3030mm - 3060mm.

3250mm Physical Width: Your opening must measure between 3280mm - 3310mm.

3500mm Physical Width: Your opening must measure between 3530mm - 3560mm.

3750mm Physical Width: Your opening must measure between 3780mm - 3810mm.

4000mm Physical Width: Your opening must measure between 4030mm - 4060mm.

We comprehend that our standard sizes may not be suitable for all existing openings. If your opening does not meet the criteria specified, you may require made-to-measure gates. In this case, you can obtain a quote for customised gates by completing our enquiry form

Height Dimensions

Measuring the available space between your walls or posts is essential before ordering to ensure that you have the correct size for your installation. You will need to ensure that each wall or post is at least 100mm (4 inches) higher than the physical height of the gates to allow for the installation of the hinges.

You have a two options if your walls or posts need to be taller to accommodate the hinge height.

1) You will need to purchase a smaller size that fits your available space.

2) Add supplementary posts to your installation to compensate for any height difference.



Are Optional Aluminium Posts Required?

Our optional universal aluminium posts are designed to provide a secure and stable foundation when no solid masonry structure is available for attaching the hinges. They can also be utilised to avoid damaging existing masonry structures. The posts can be secured directly into the ground using concrete or bolted onto any other solid surface, providing a stable and secure foundation for the gates.

Post Specification

Profile: 3.5mm thick

Size: 150mm x 150mm x 2400mm

Integral base plate (with fixing holes)

Available in black or anthracite grey

A post cap prevents water ingress.



Do you Need Help & Advice?

We are committed to ensuring that customers receive the correct size for their needs. We, therefore, recommend that you contact us if you have any questions or concerns about sizing or fit. We can provide specific guidance and ensure you have the correct product for your application. Additionally, we can offer made-to-measure options for customers who require custom sizes.

Made to measure aluminium driveway gates are available - Fill in our enquiry form to get a quote


Available Powdercoated Paint Colours

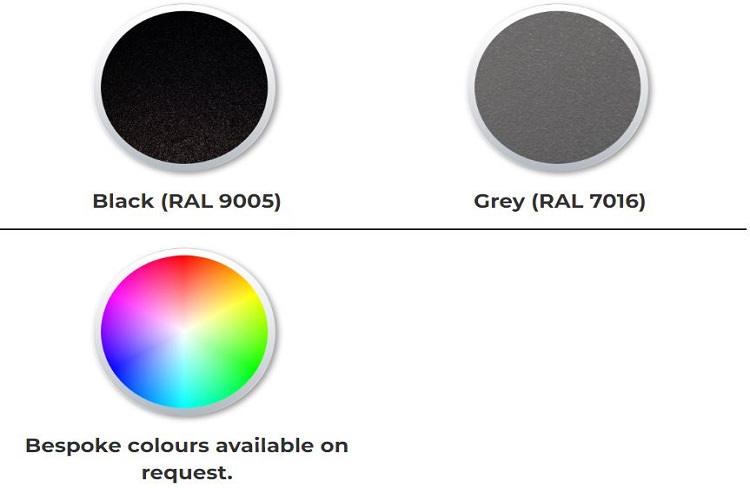

Aluminium driveway gates colour chart

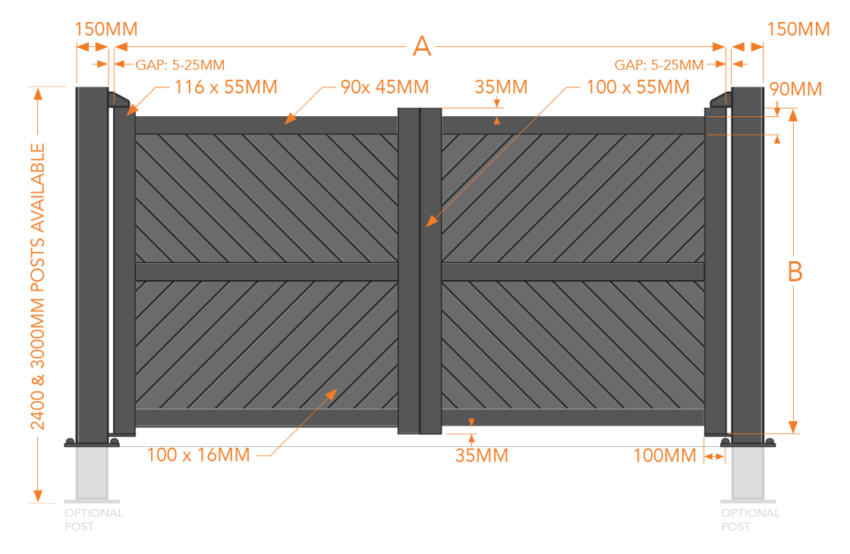

London aluminium driveway gates drawing & specification

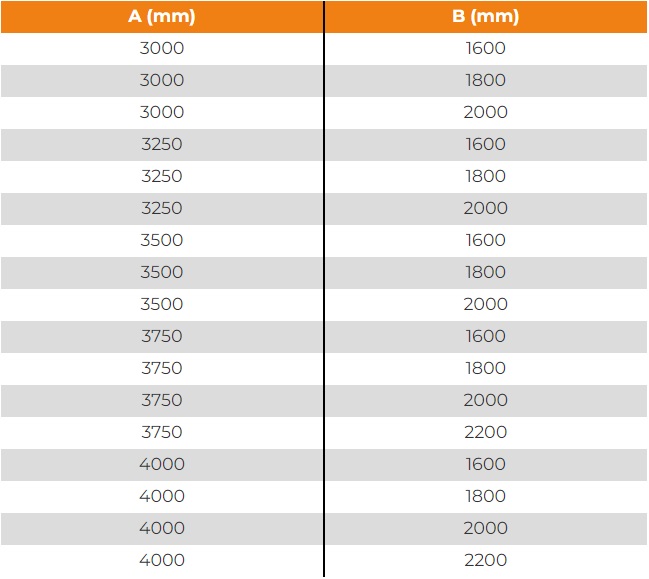

London driveway gates size options

Wall mounted hinge design

Floor mounted hinge design
