Abbey Bow Top Wrought Iron Style Metal Side Gate

Abbey Bow Top Wrought Iron Style Metal Side Gate

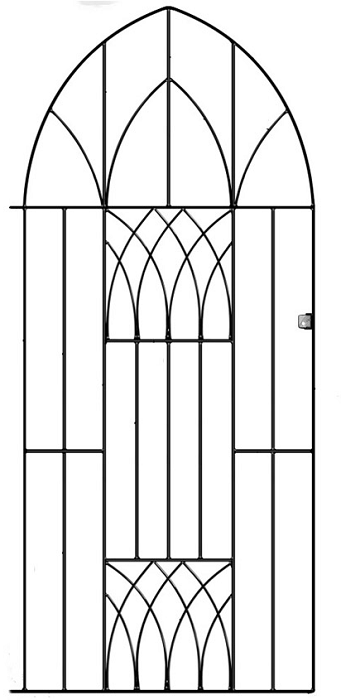

Complete with Gothic arch and appealing infill panel the Abbey metal side gate is an excellent option for the design conscious homeowner.

Fits Opening:

Other Options & Accessories

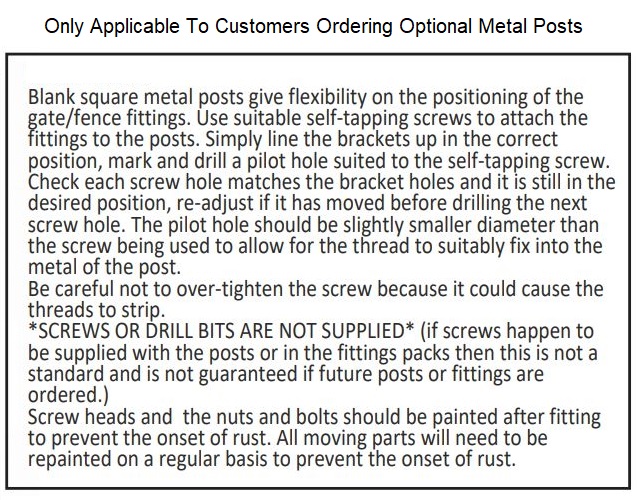

Metal Post:

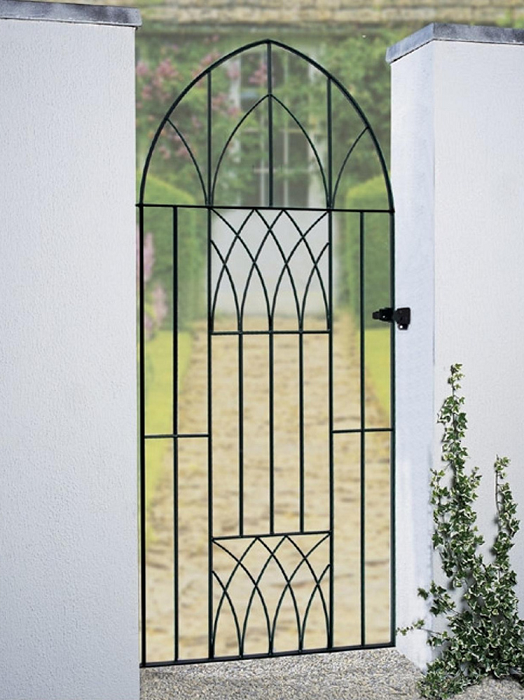

Available to buy online in a range of sizes the Abbey Bow Top Metal Side Gate is one of our more visually appealing designs. Manufactured to a high standard using traditional wrought iron construction techniques the eye catching Gothic arch and unique infill panels combine to create a magnificent side gate design suitable for any pedestrian entrance at an extremely competitive price.

Abbey Metal Gate Specification

  • Side gates feature a Gothic arch top and attractive infill panels.
  • Provides added privacy and security without compromising on aesthetic integrity.
  • Available in a selection of sizes to suit many popular residential applications.
  • Abbey side gates are constructed with 25mm x 6mm frames, 10mm infill bars and 6mm decorative metal detailing.

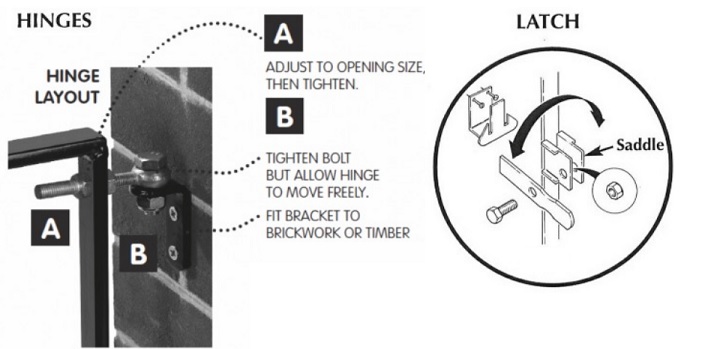

  • Metal gates are supplied with a pair of fixed hinges and a universal latch (can be secured with a padlock).
  • Suitable for left or right hand hanging.
  • Zinc plated (electro galvanised) and powder coated black.

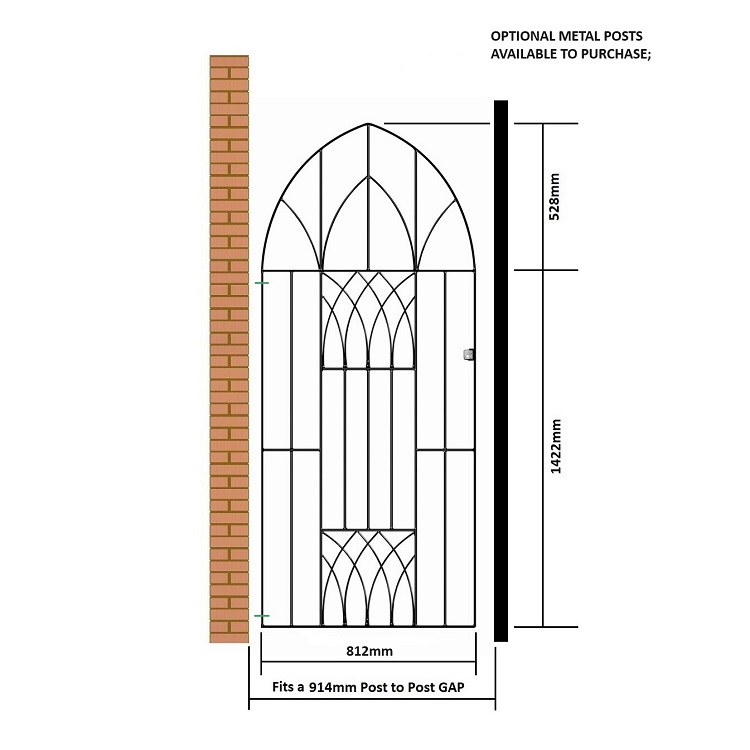

Physical Height

  • 914mm (3ft) gap size = 1950mm (76 3/4")
  • 991mm (3ft 3") gap size = 1988mm (78 1/4")



Abbey bow top metal side gate ordering guide

Click here for made to measure metal gates

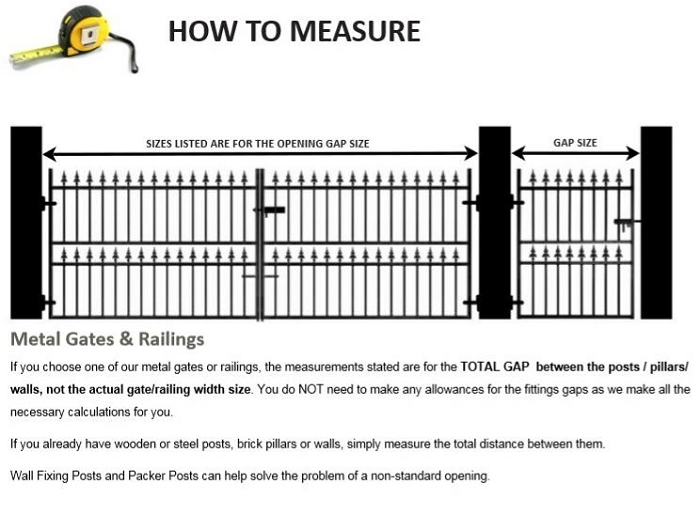

Read the measuring guide for help and advice


Looking for technical support and advice? Contact Metal Gates Direct on 0844 804 5577 or email You may also want to take a look at our Measuring GuideFrequently Asked Questions and Ordering Guide for further online guidance.



Also Available to Buy Online in the Abbey Wrought Iron Style


Contact us today to buy metal side gates in a choice of modern and traditional designs
