Abbey Low Bow Wrought Iron Style Metal Garden Gate

Abbey Low Bow Wrought Iron Style Metal Garden Gate

The Abbey Garden Gate is a superior choice for style-conscious homeowners looking for an affordable yet fashionable security solution. Its unique design features a Gothic arch that adds a touch of elegance to any front garden entrance or outdoor area, making it a popular option among homeowners looking for something a little different.

Choose the Size You Need:

Other Options & Accessories

Metal Post:

The Abbey Low Bow Metal Garden Gate uses high-quality solid steel components for strength, security and improved durability. It features an imposing gothic arch top and an individually styled infill panel. This magnificent wrought iron garden gate design will blend with various outdoor locations, making it a perfect choice for modern or period garden designs.

Abbey Low Bow Wrought Iron Style Gate Specification

  • Visually appealing gothic arch adds kerb appeal.
  • Suitable for many styles of residential property.
  • 25mm x 6mm metal frames, 10mm infill bars and 6mm decorative infill panel.
  • Abbey low bow metal garden gates include adjustable hinges and a universal latch (can be secured using a padlock).
  • Zinc-plated (electro-galvanised) and powder-coated black.


Physical Height

  • Fits Opening: 914mm (3ft) = 1340mm
  • Fits Opening: 991mm (3ft 3") = 1378mm



Ordering Information

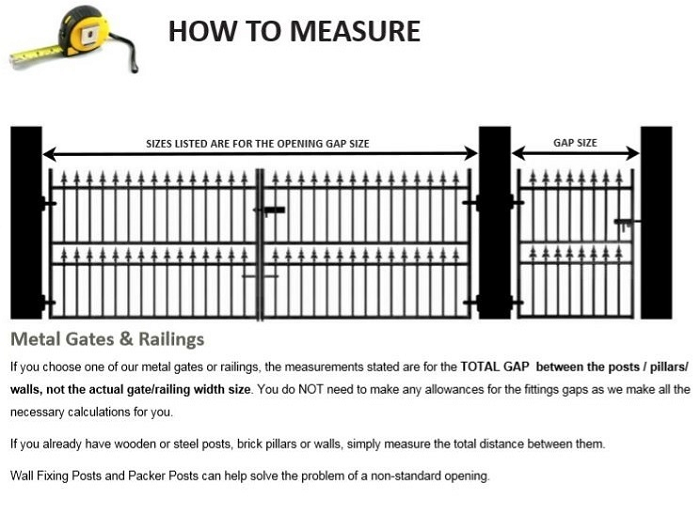

What Does the "Fits Opening" Measurement Designate?

This measurement is the size of the gap you will need to have between your brickwork or posts. The "fits opening" dimensions already incorporate the space requirements for the hinges and latch fittings, so do not make any extra allowances for these components. If you are unsure which size to order, please read our measuring guide.

What Does "Physical Height" Mean?

This dimension is the actual height of the product to the top of the arch. When installing, leave a 50mm gap between the ground level and the underside of the framework to allow for unrestricted movement as it opens and closes.

Need help with sizes? Click here to view the measuring guide



Confused About Sizes or Need Technical Support?

For help and advice on buying metal gates for your home and garden, read the measuring guide or contact us for help and advice. For more online guidance, refer to the frequently asked questionsordering guide and installation advice pages.

Made to Measure Metal Gates



Also Available to Buy Online in the Abbey Wrought Iron Design

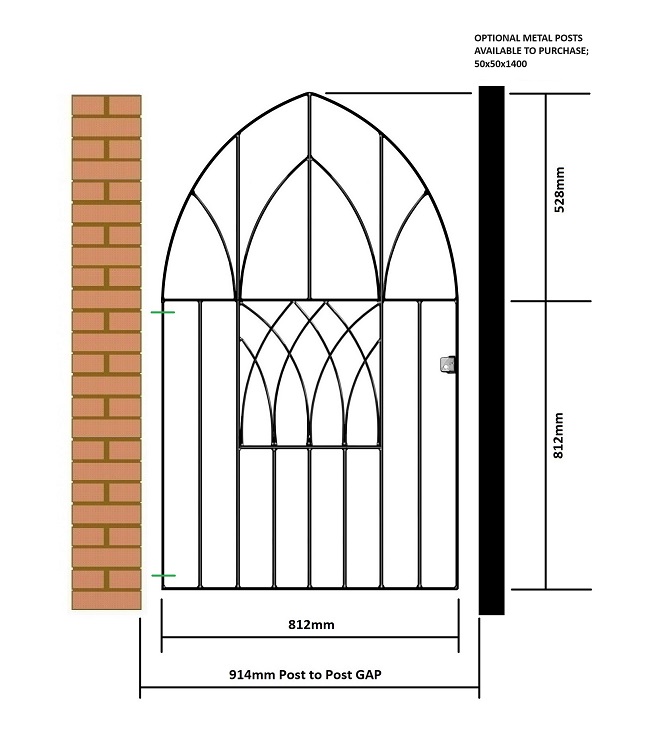

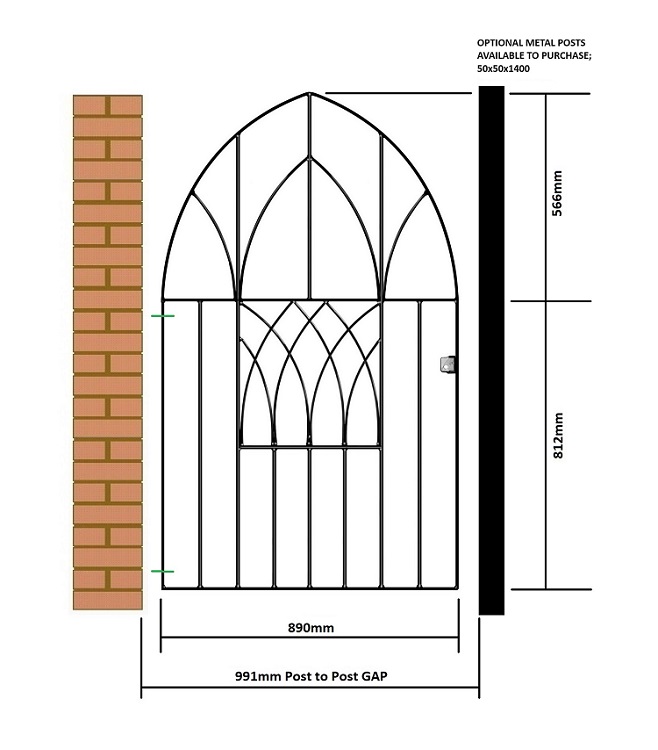

Abbey low bow garden gate measuring diagram

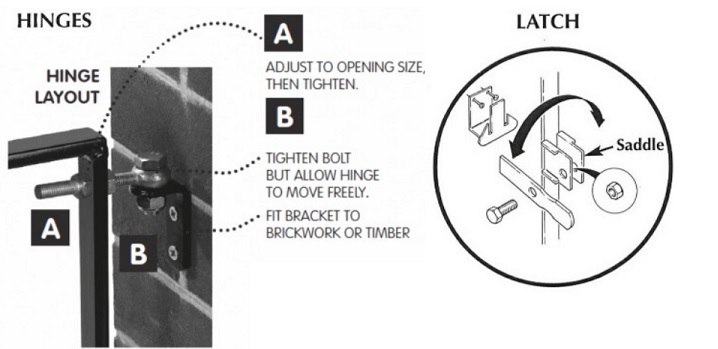

Abbey low bow garden gate adjustable hinge and latch diagram

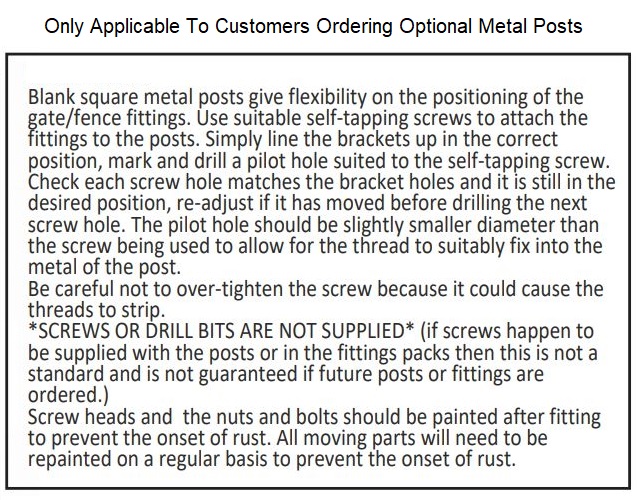

Metal post fixing information
