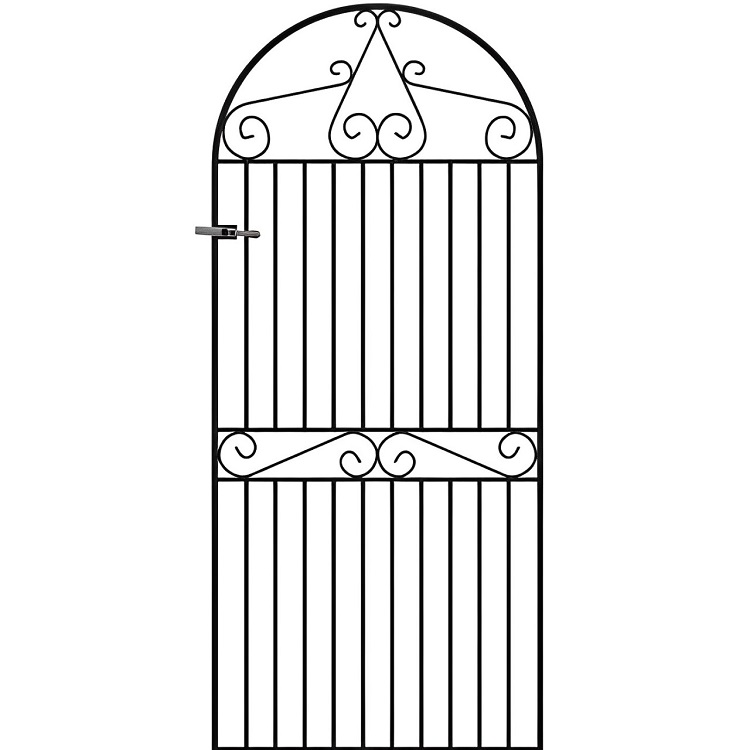

Marlborough Arched Wrought Iron Style Metal Side Gate

Marlborough Arched Wrought Iron Style Metal Side Gate

The Marlborough Arched Side Gate is an outstanding design that will blend with a wide range of property types. Suitable for various applications around the home and garden where additional privacy and security are required, the gate benefits from a solid steel frame, timeless bow top and ornate wrought iron style scrolls for further aesthetic appeal.

Please allow approximately 4 - 5 weeks lead time for delivery of this product.

Choose the Size You Need:

Other Options & Accessories

Hinge Post:
Latch Post:

Handmade in the UK in a traditional wrought iron style, the Marlborough Arched Metal Side Gate is excellent value for money. Available in a selection of sizes to suit many standard opening widths, the gate includes a solid steel construction, decorative scrollwork and a pair of surface-mounted adjustable hinges.

Marlborough Arched Metal Side Gate Specification

  • Suitable for various applications, including passageways, pedestrian entrances and rear access points into the garden.
  • Handmade in the UK.
  • The timeless arched top and ornate scrollwork will add an elegant statement to any setting.
  • 20mm x 8mm steel frame, 10mm infill bars and 10mm x 3mm scrolls.
  • Includes a pair of surface-mounted hinge brackets, adjustable hinges and a universal latch
  • Suitable for left or right-hand hanging.
  • Black primed (undercoat). To protect against the formation of rust, you must paint all primed surfaces before you install the gate.


Optional Finish

We can offer a zinc-plated (electro-galvanised) and black powder-coated paint finish for an additional charge. Please email us for more information.


Height (after installation)

  • "Fits Opening" 760mm (2ft 6") | Height = 1701mm
  • "Fits Opening" 840mm (2ft 9") | Height = 1746mm
  • "Fits Opening" 920mm (3ft) | Height = 1784mm
  • "Fits Opening" 1000mm (3ft 3") | Height = 1810mm
  • "Fits Opening" 1070mm (3ft 6") | Height = 1861mm



Ordering Information

What Does the "Fits Opening" Measurement Indicate?

This dimension describes the opening width required between walls or other supports. The space needed for the hinges and latch is already included in the measurements shown in the menu, so no additional allowances are necessary. If you require further information, read our measuring guide or contact us before ordering.

What Does "Height (after installation)" Mean?

This measurement includes an allocation of 50mm for ground clearance. It is measured from the floor to the top of the arch.

Read the measuring guide for help and advice



Are you Confused About Ordering Sizes?

We have provided several resources online to help you choose the right size to meet your requirements. Search through the measuring guideordering guide, and frequently asked questions, or if you can't find the details required, fill in our enquiry form for additional support.

Click here for made to measure metal gates



Also Available in the Marlborough Wrought Iron Style

How to measure the opening between walls or posts

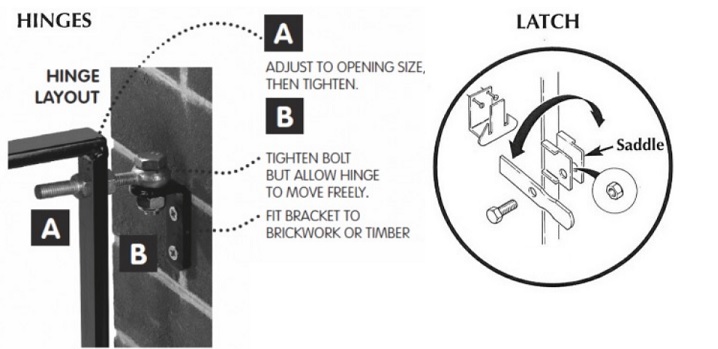

Marlborough arched side gate hinge and latch design
