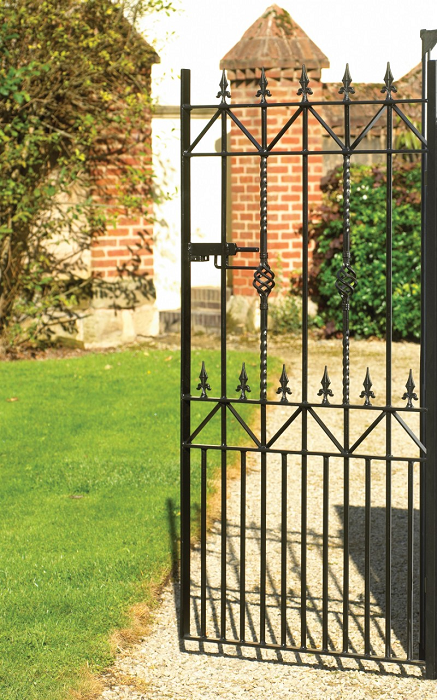

Royale Ascot Wrought Iron Style Metal Side Gate

Royale Ascot Wrought Iron Style Metal Side Gate

Suitable for any residential entrance, the Royale Ascot Wrought Iron Style Side Gate is handmade from solid steel to ensure strength and durability. Available in a choice of sizes, it benefits from a heavy-duty framework, imposing finials, cage infill bars and dog bars in the lower section, which are an excellent feature if you need to keep your pets from straying onto the road.

Please allow approximately 4 - 5 weeks lead time for delivery of this product.

Choose the Size You Need:

Other Options & Accessories

Hinge Post:
Latch Post:

Handcrafted in the UK in a traditional wrought iron style, the Royale Ascot Metal Side Gate blends timeless design with modern manufacturing techniques to ensure strength, durability and reliability without compromising aesthetic integrity. Featuring decorative elements such as fleur de lys finials, the ornate style will blend with any residential entrance making this great value metal gate design a must-have addition for any home and garden setting.

Royale Ascot Wrought Iron Style Gate Specification

  • Suitable for any home and garden design.
  • Manufactured in the UK to high standards to ensure years of reliable operation.

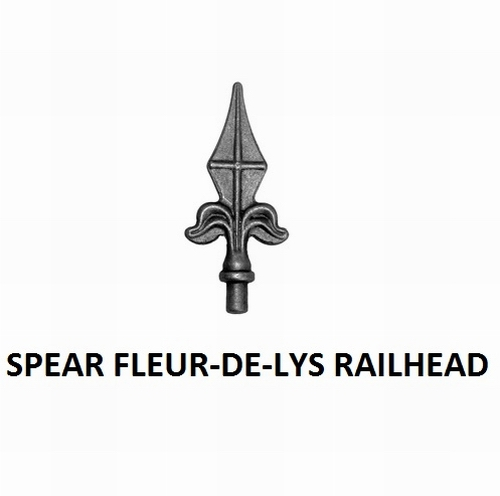

  • Wrought iron style fleur de lys finials and decorative caged infill bars create a unique appeal.
  • 40mm x 30mm solid metal hanging stiles, 40mm x 10mm closing stiles and 16mm infill bars to ensure optimum performance levels.
  • Supplied with a pair of adjustable hinges and a sliding latch (can be secured with a padlock).
  • Suitable for right-hand hanging only (as viewed from the road).
  • Ascot tall metal gates are black primed (undercoat). To protect against corrosion, you must paint the primed steel surfaces before installation.


Height (after installation)

  • 1830mm (6ft) + finials mounted above the framework


Optional Extras

If you are interested in the following options, contact us for a price.

  • Heavy-duty mortise lock
  • Ball top finials
  • Safety top fleur de lys finials
  • Zinc plated (electro galvanised) and powder coated black



Ordering Information

What Does the "Fits Opening" Measurement Indicate?

To ensure a perfect fit, the "fits opening" measurement is the width required between your walls, existing posts, or support structures. The hinge and latch components are already included in the size, so you don't need to factor them in. If you need more information, contact us before placing your order. You can also check out our measuring guide for help.

What Does "Height (after installation)" Mean?

The height of the Royale Ascot wrought iron style side gate includes an allowance of 50mm for ground clearance. It is taken from ground level to the top of the horizontal framework. The finials above this point are not included in the height dimension.

View the Measuring Guide



Are You Confused About Ordering Sizes?

We recommend you read the measuring guidefrequently asked questions and ordering guide to guide you through the ordering process. Alternatively, contact us with your queries, and we will be on hand to assist.

Made to Measure Gates



Also Available to Buy Online in the Royale Ascot Wrought Iron Design

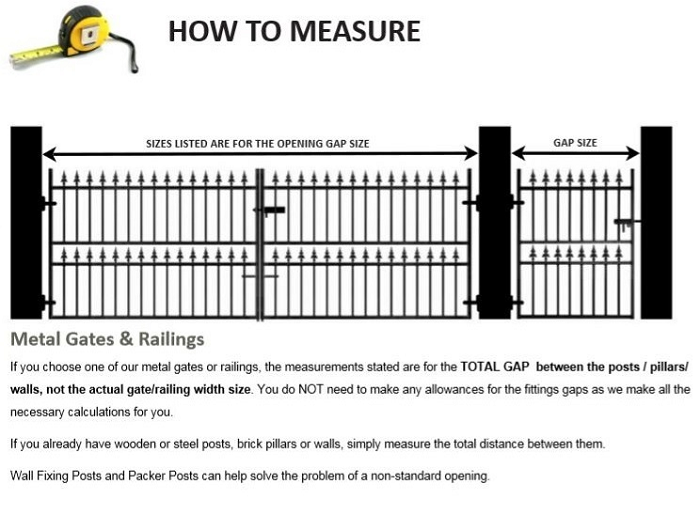

Royale Ascot side gate measuring diagram

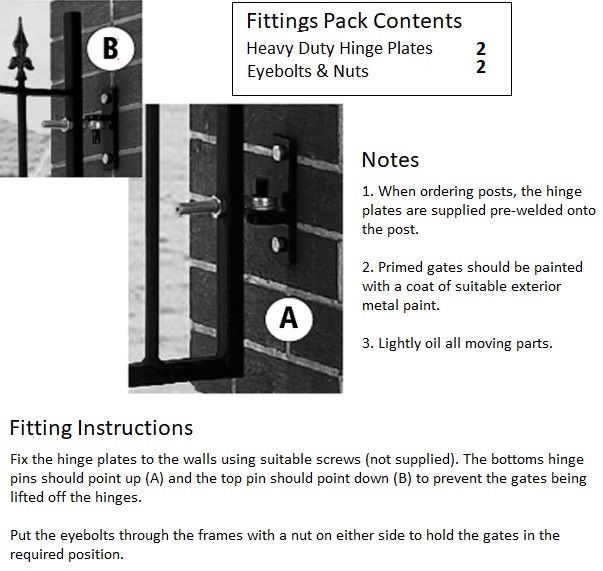

Royale Ascot side gate adjustable hinge and latch diagram
