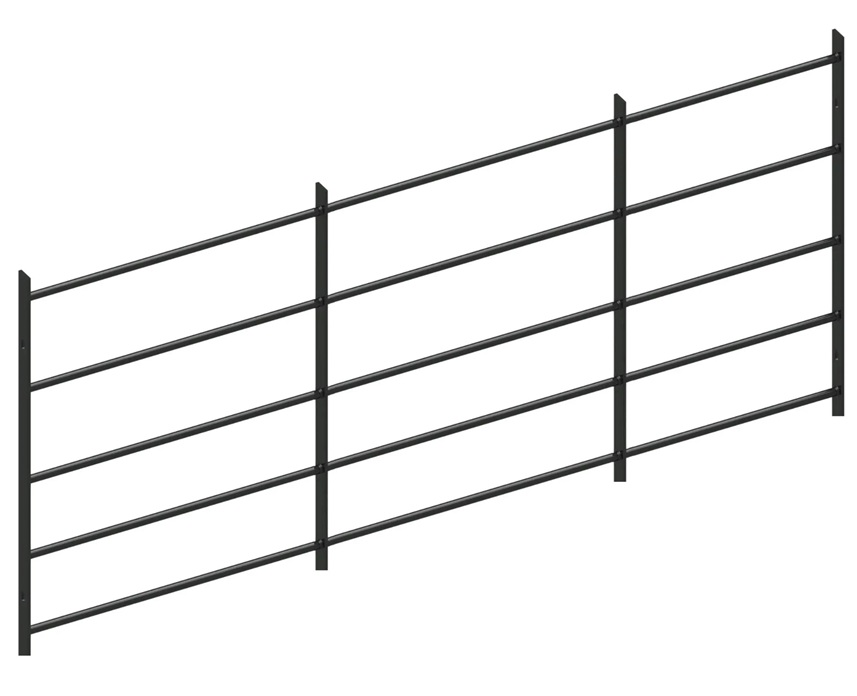

5 Bar Metal Estate Farm Fence Panel

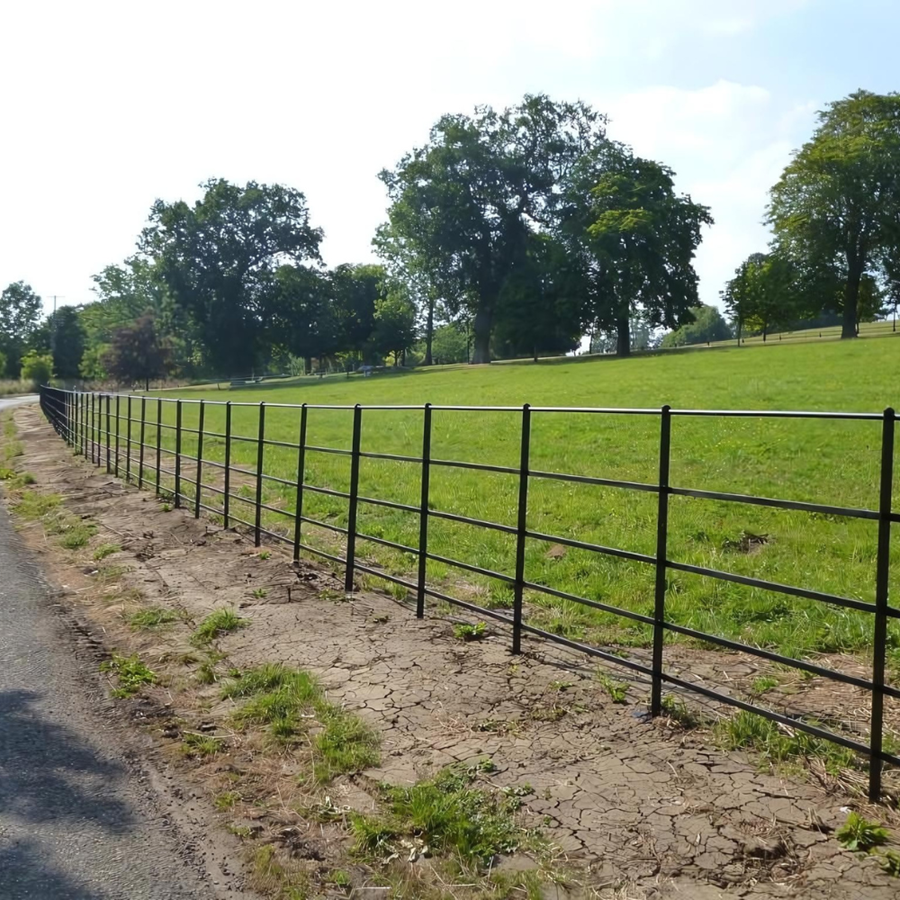

Featuring a timeless design of evenly spaced vertical posts linked by five horizontal rails, these Metal Estate Fencing Panels offer both durability and visual appeal. The low-maintenance black powder coating protects against weathering while providing an ideal solution for estates and farms that require defined boundaries without hindering visibility of the surrounding landscape.
{"master_inherit":"1","ignore_master_inherit_settings":[],"master_id":null}
Transform the boundary of your property with these versatile 5 Bar Metal Estate/Farm Fence Panels. Designed with affordability in mind without compromising on quality or style, they are perfect for farms, residential estates, and rural properties. The classic five-bar fencing feature a practical detachable end section that allows for easy on-site length adjustment (cutting required), to ensure a perfect fit regardless of your specific requirements. Whether you're securing livestock, defining property lines, or creating decorative boundaries, these excellent value fence panels deliver reliable performance with minimal maintenance requirements.

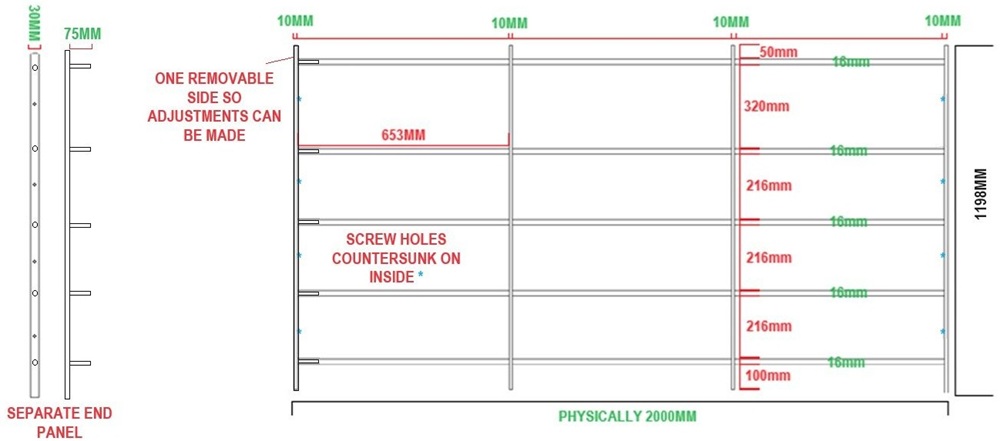

Product Dimensions
- Physical Width: 2000mm
- Physical Height (refer to the product images for additional measurements): 1200mm
Ordering Sizes
- Width: The "physical width" measurement equals the gap size needed between posts. Unless you need to cut the panels to length before installation, no other calculations are required.
- Height: The "physical height" is measured from the underside to the top of the vertical bars.

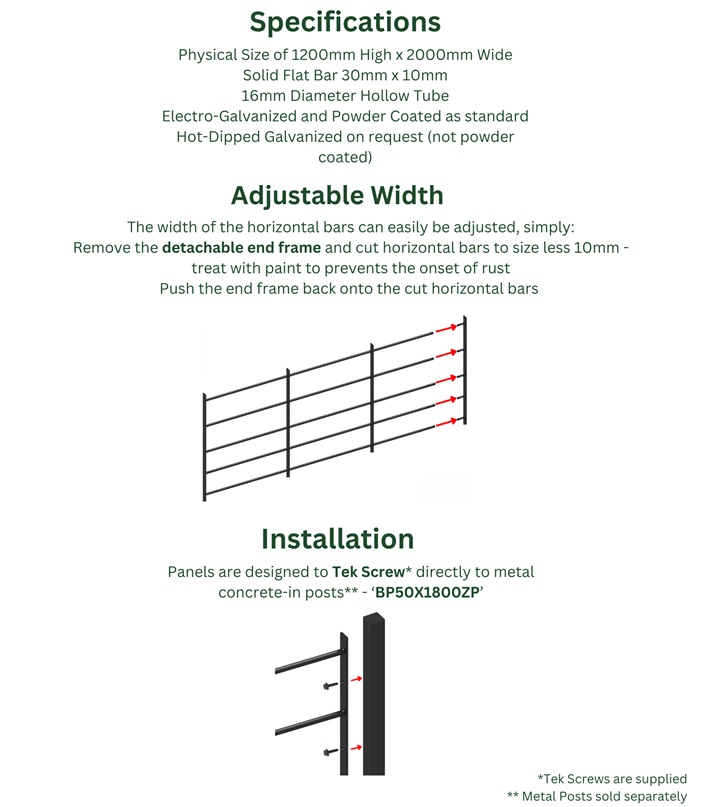

Technical Specifications
- Frame Construction: 30mm x 10mm flat bar metal frames.
- Rail Material: 16mm diameter hollow tubing.
- Base Coating: Zinc plated (electro galvanised) for added resistance to corrosion.
- Topcoat: Black powder coated paint finish.
- End Section: Detachable design for easy on-site cutting.
- Installation: Suitable for DIY fitting.
- Hardware: Each panel includes Tek screws suitable for fastening into metal posts.
Metal Posts
If required, please select from the following options:
Custom Length Adjustment

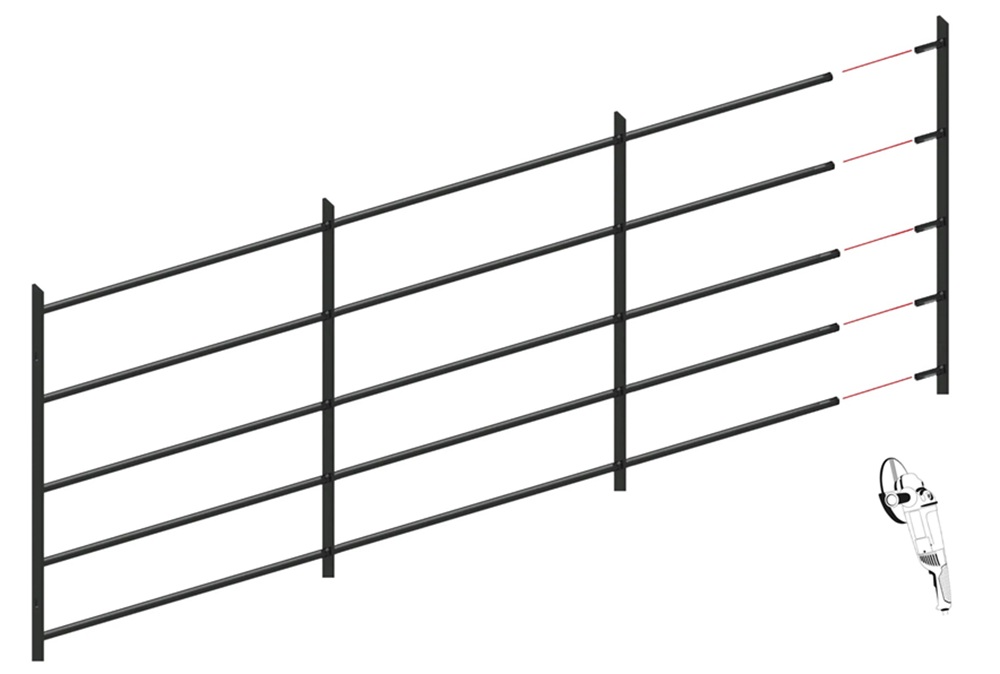

No expensive made-to-measure sizing is required when ordering. These panels can be easily modified on-site for a perfect fit using these simple steps:
- Remove the end frame from the panel.
- Cut the horizontal bars to your required width (deduct 10mm from the final measurement).
- Apply rust-inhibiting paint to all freshly cut surfaces.
- Reattach the end frame to the modified bars.

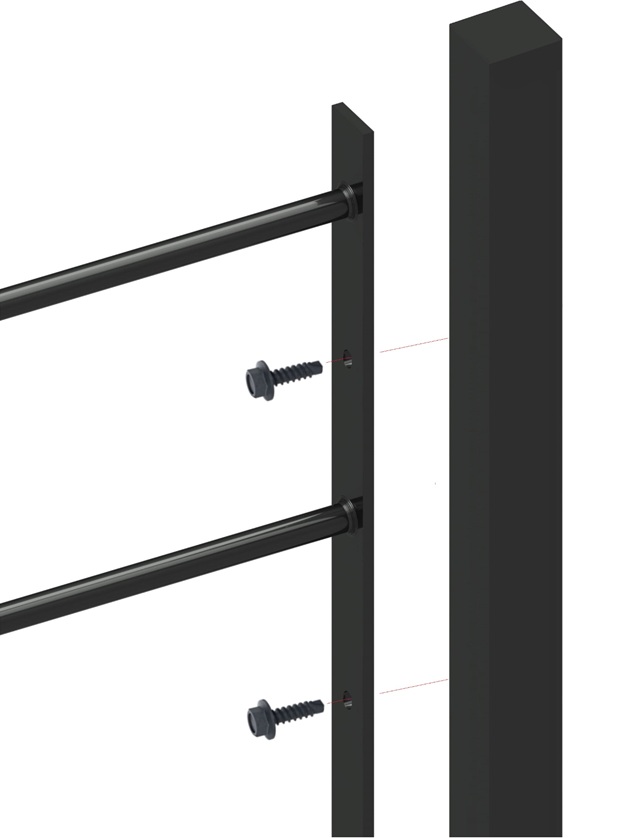

- Secure the panel to posts using the Tek screws included.
