Instructions for Installing Aluminium Driveway Gates onto Posts


Please follow the instructions shown in the illustrations below to fit your aluminium driveway gates onto posts.

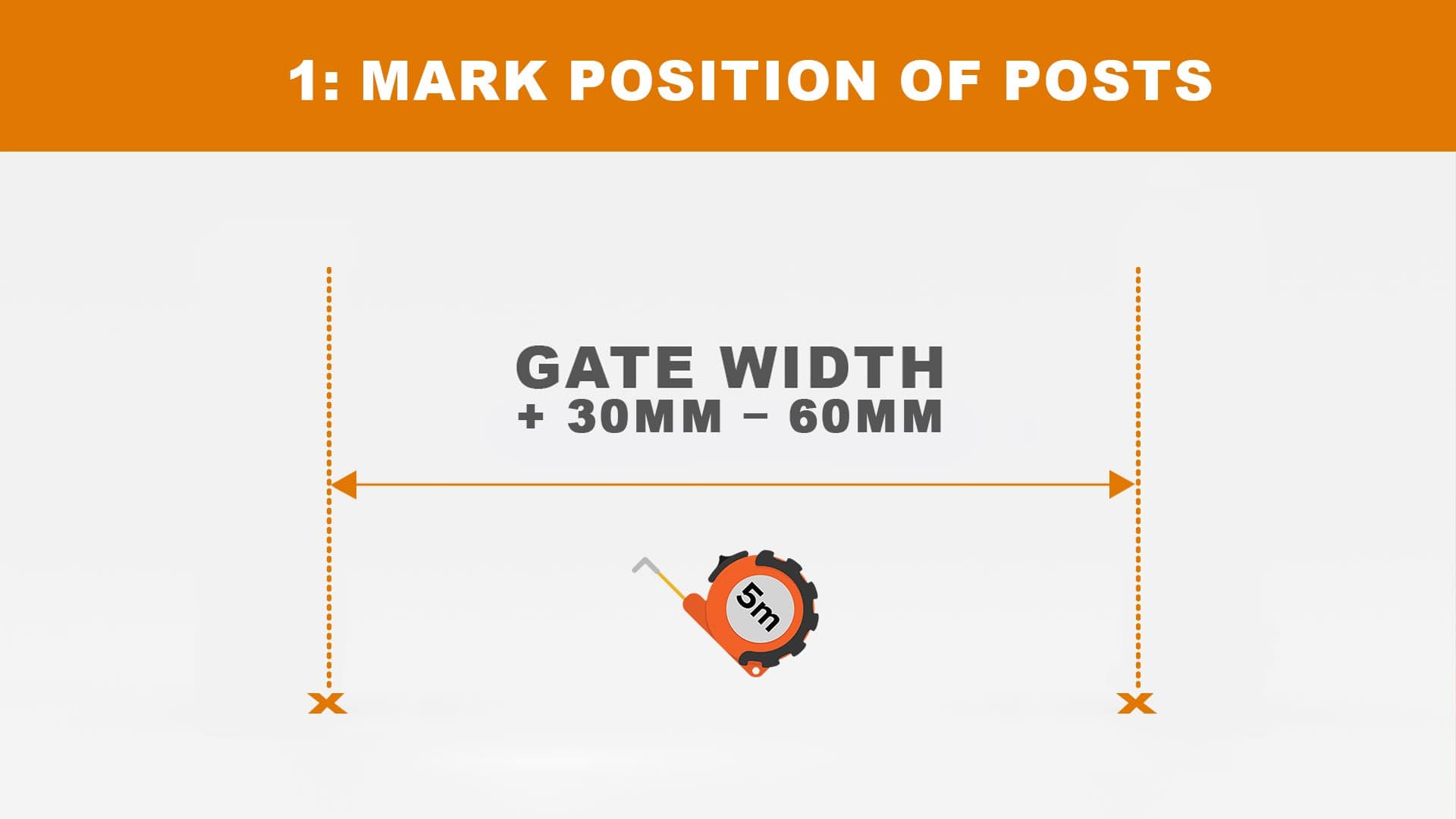

Mark position of brackets diagram

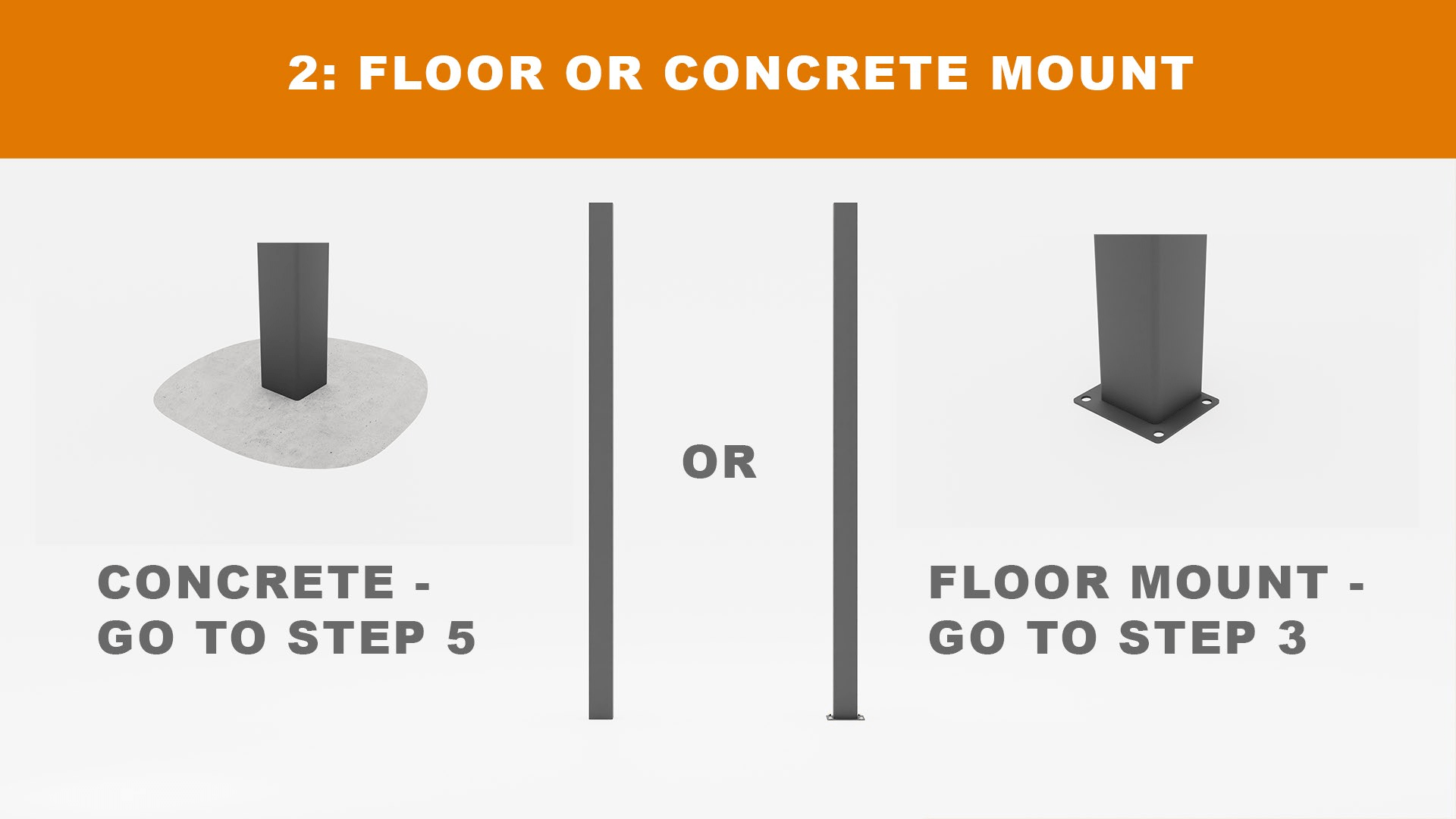

Floor or concrete mount diagram

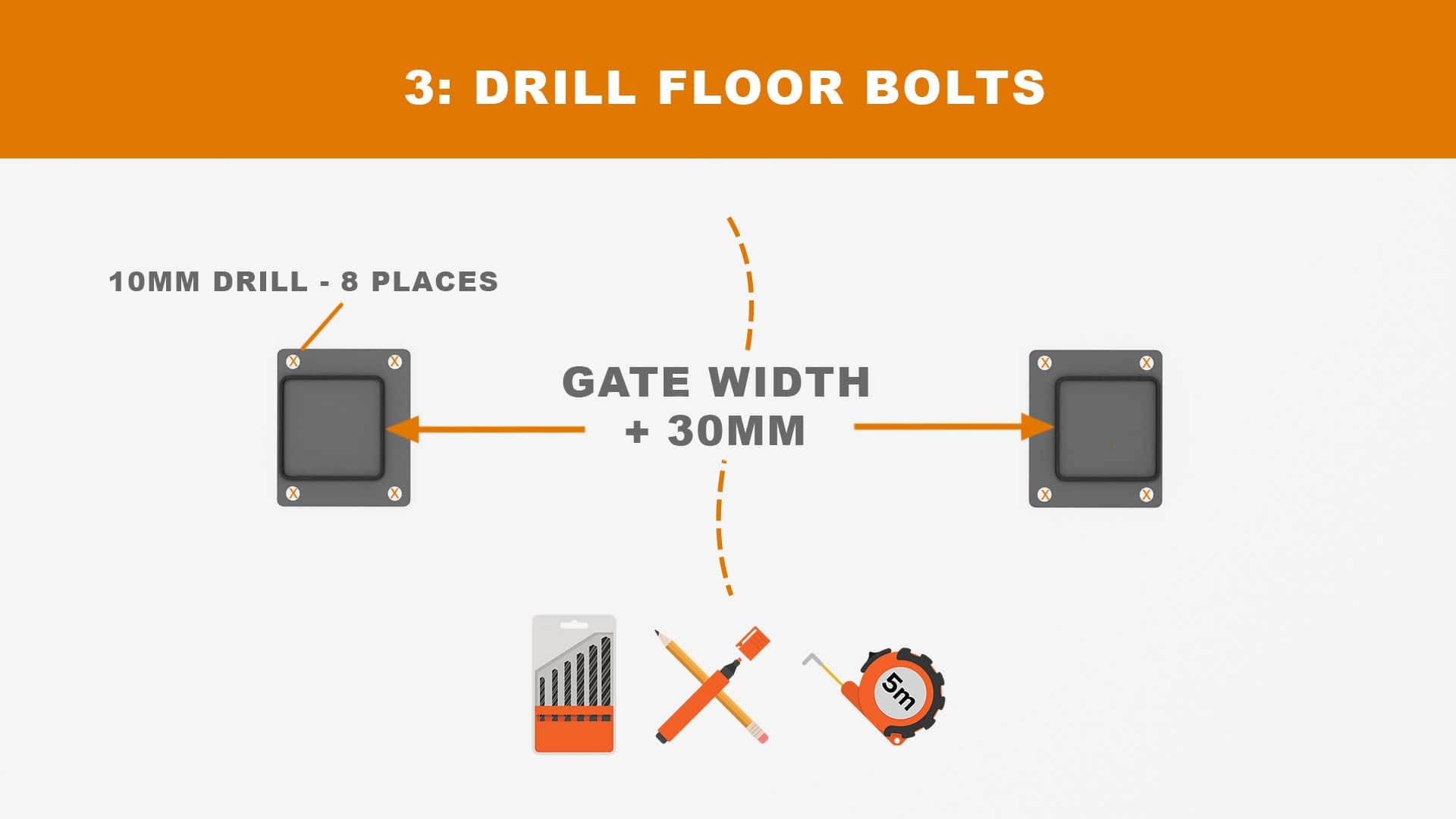

Drill floor bolts diagram

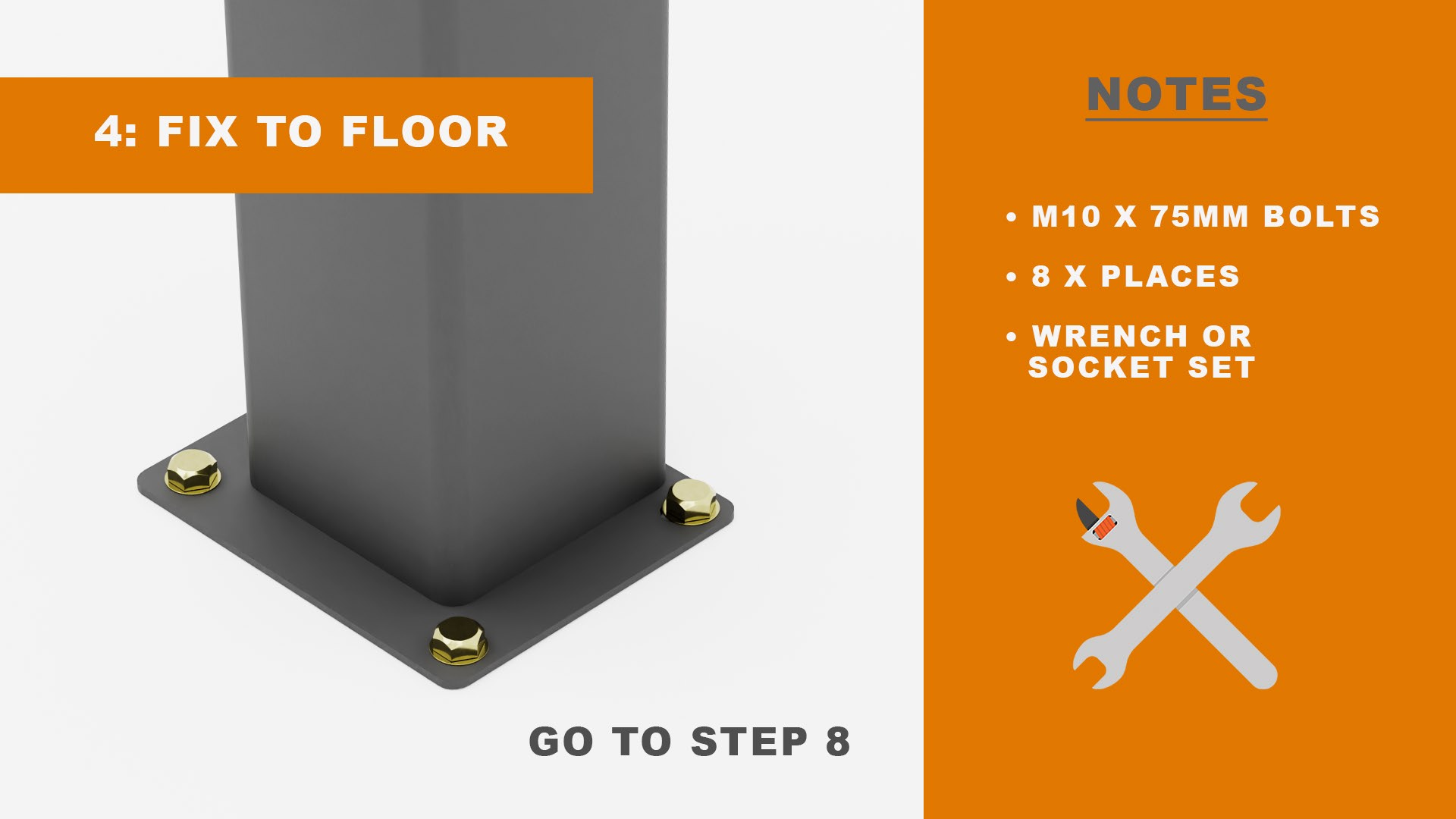

Fix to floor diagram

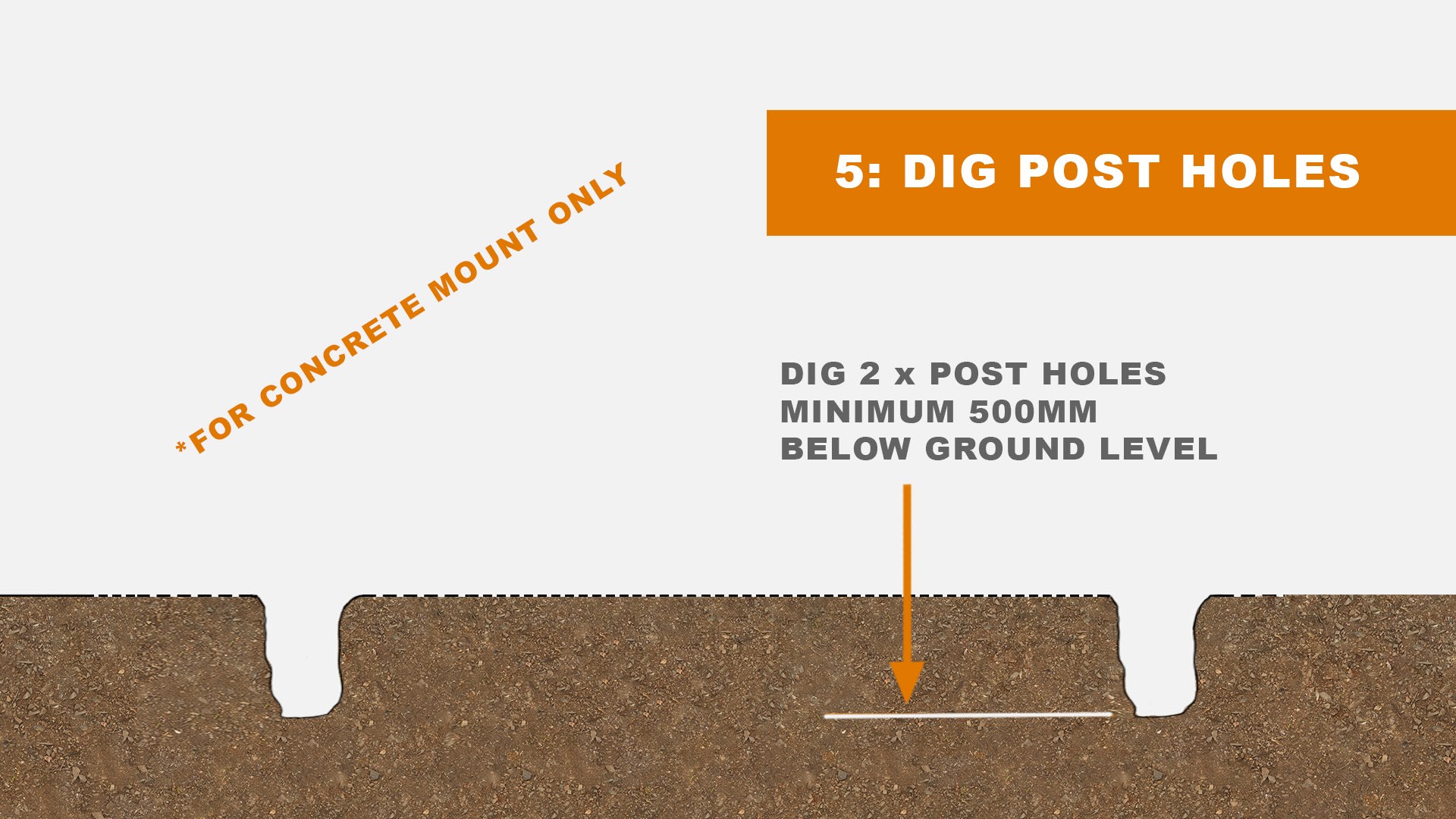

Dig post holes diagram

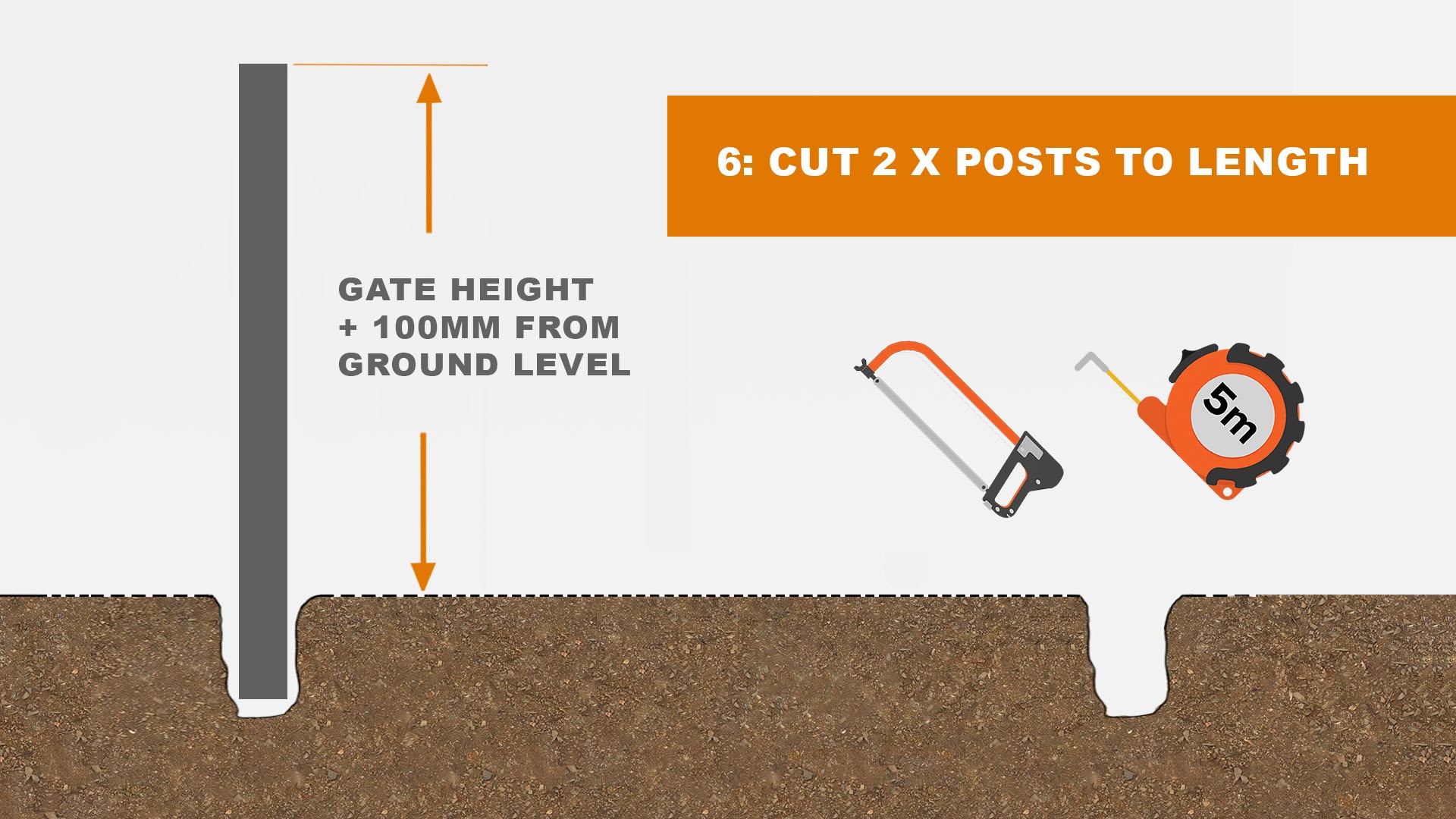

Cut post to lenght diagram

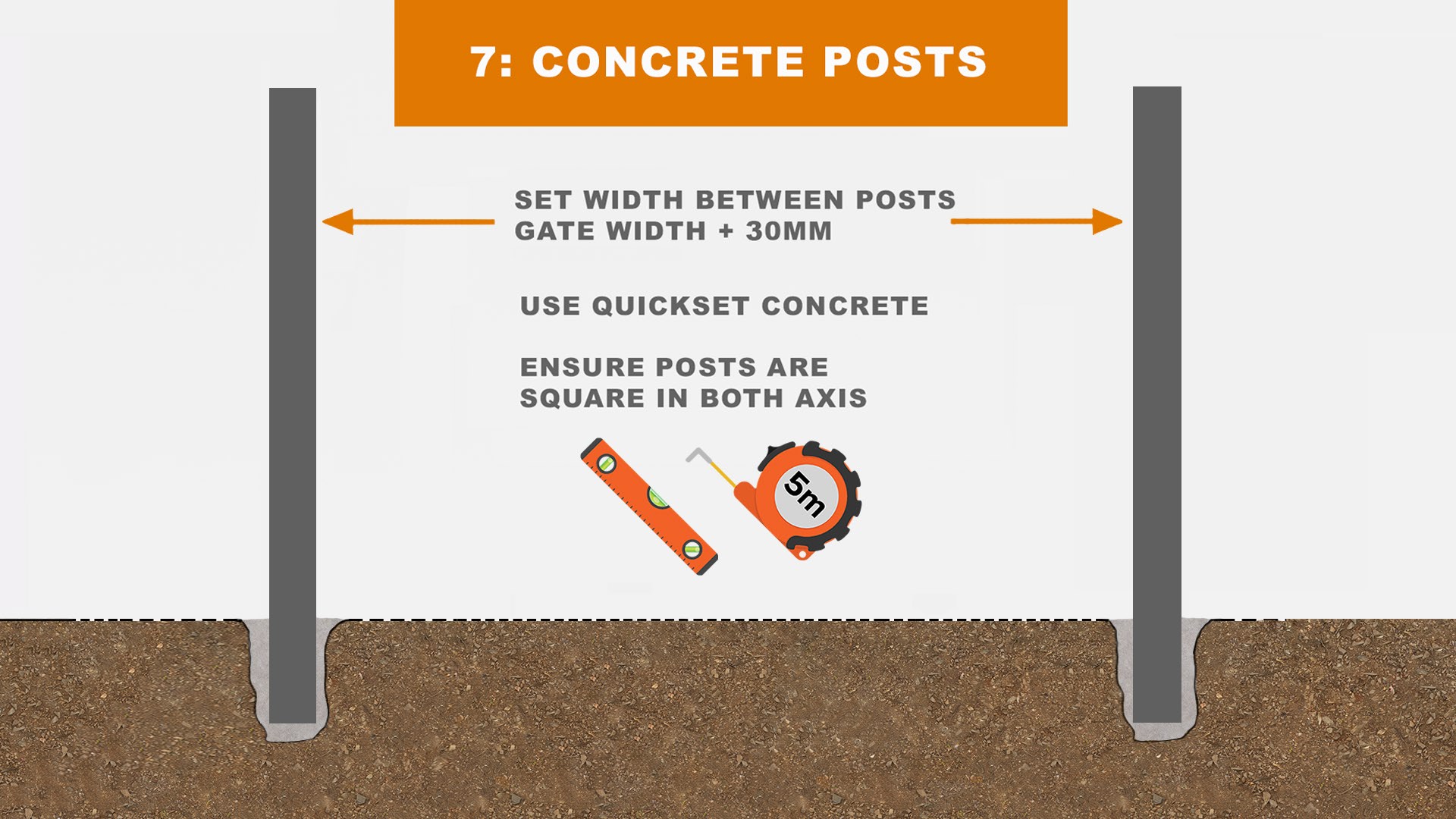

Concrete posts diagram

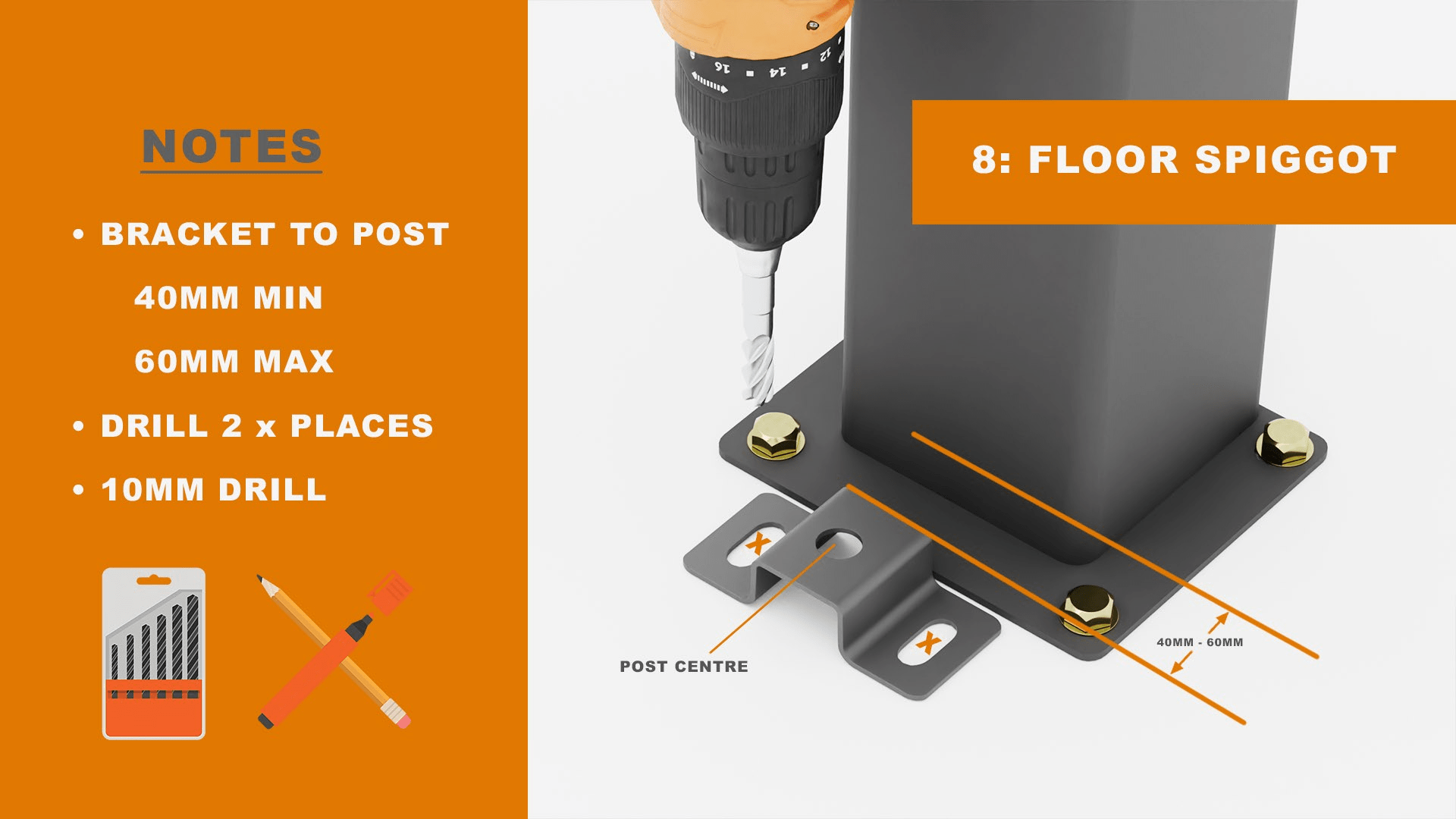

Floor spigot diagram

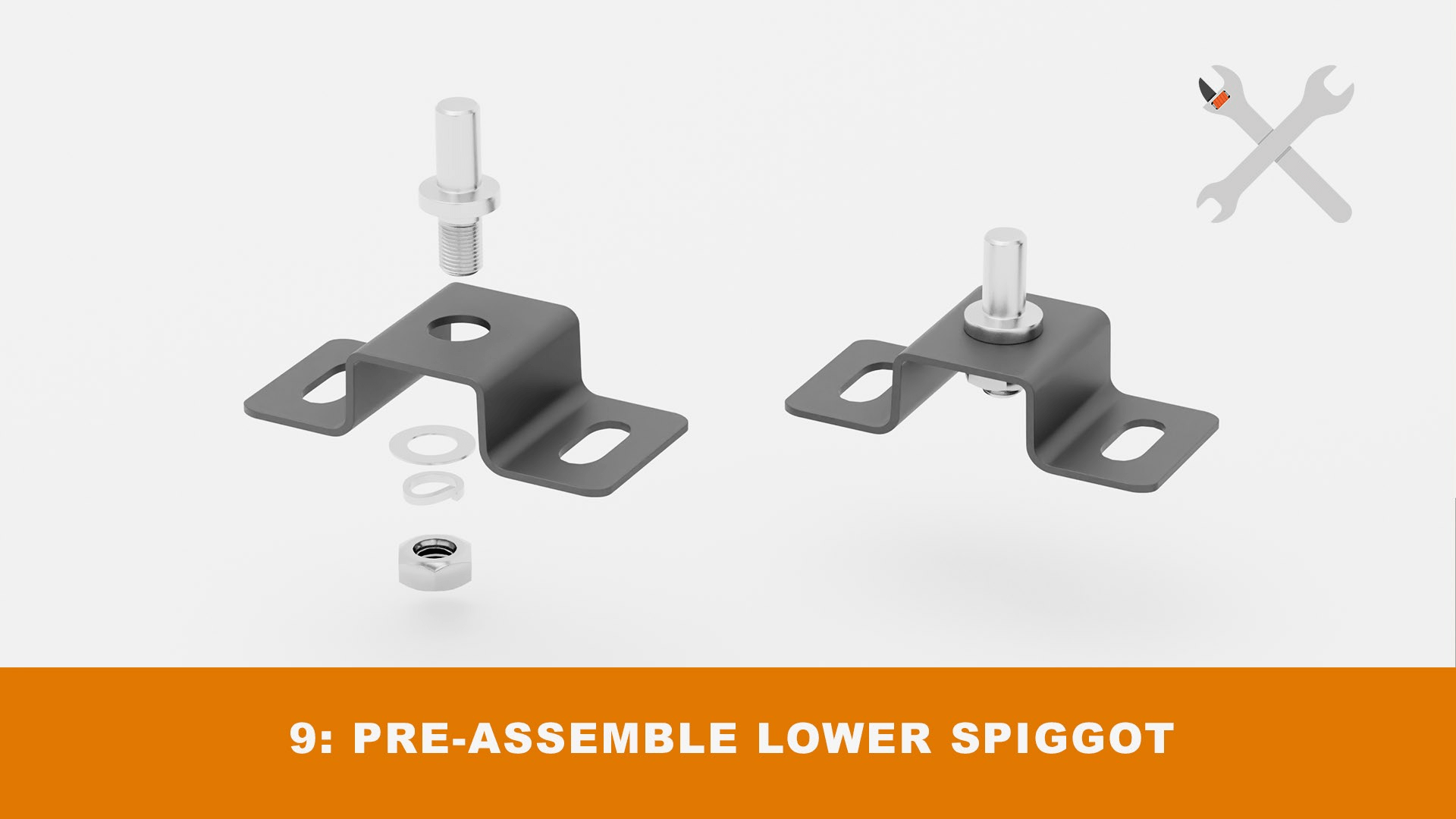

Lower spigot assembly diagram

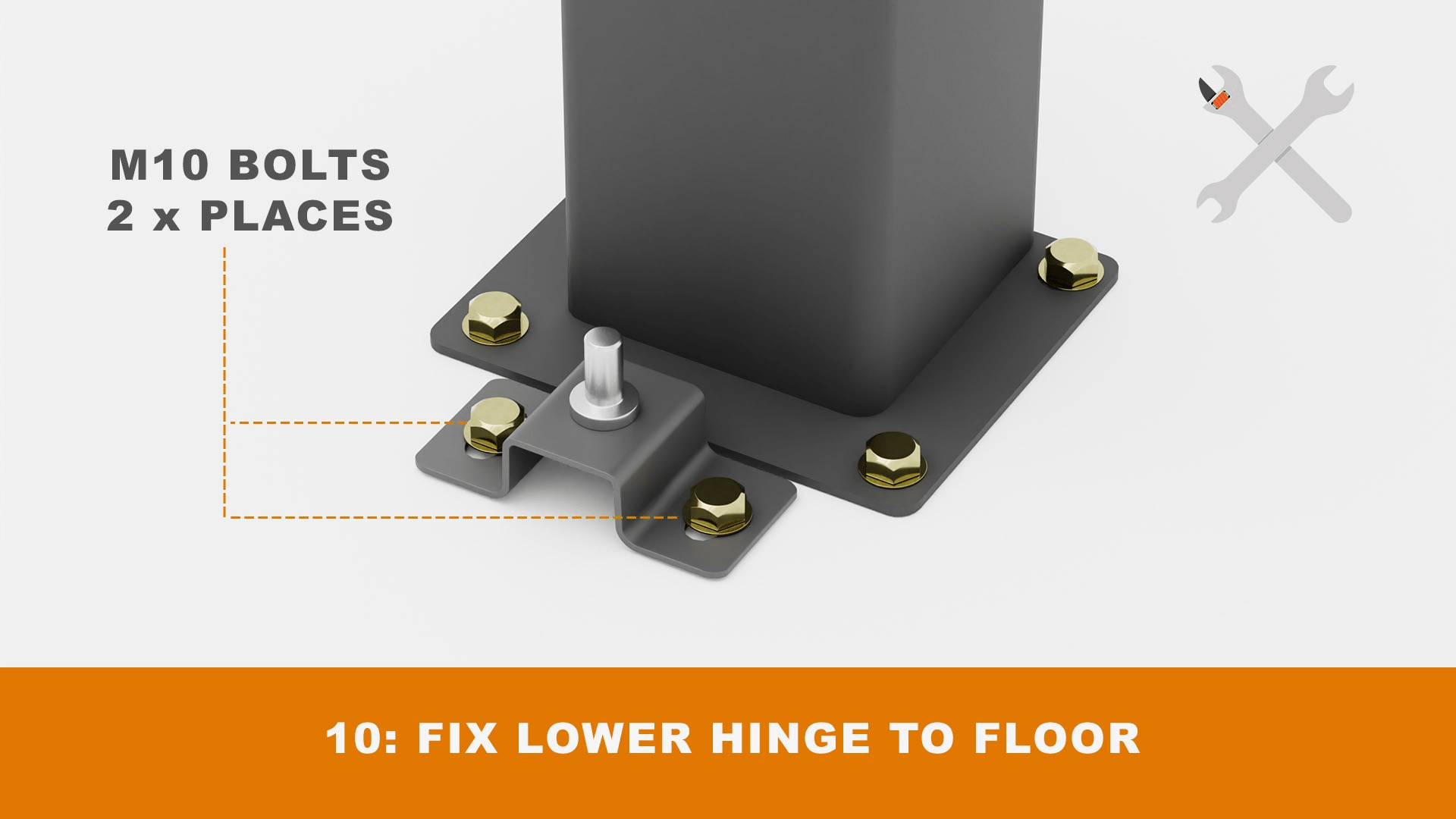

Fix lowe hinge to floor diagram

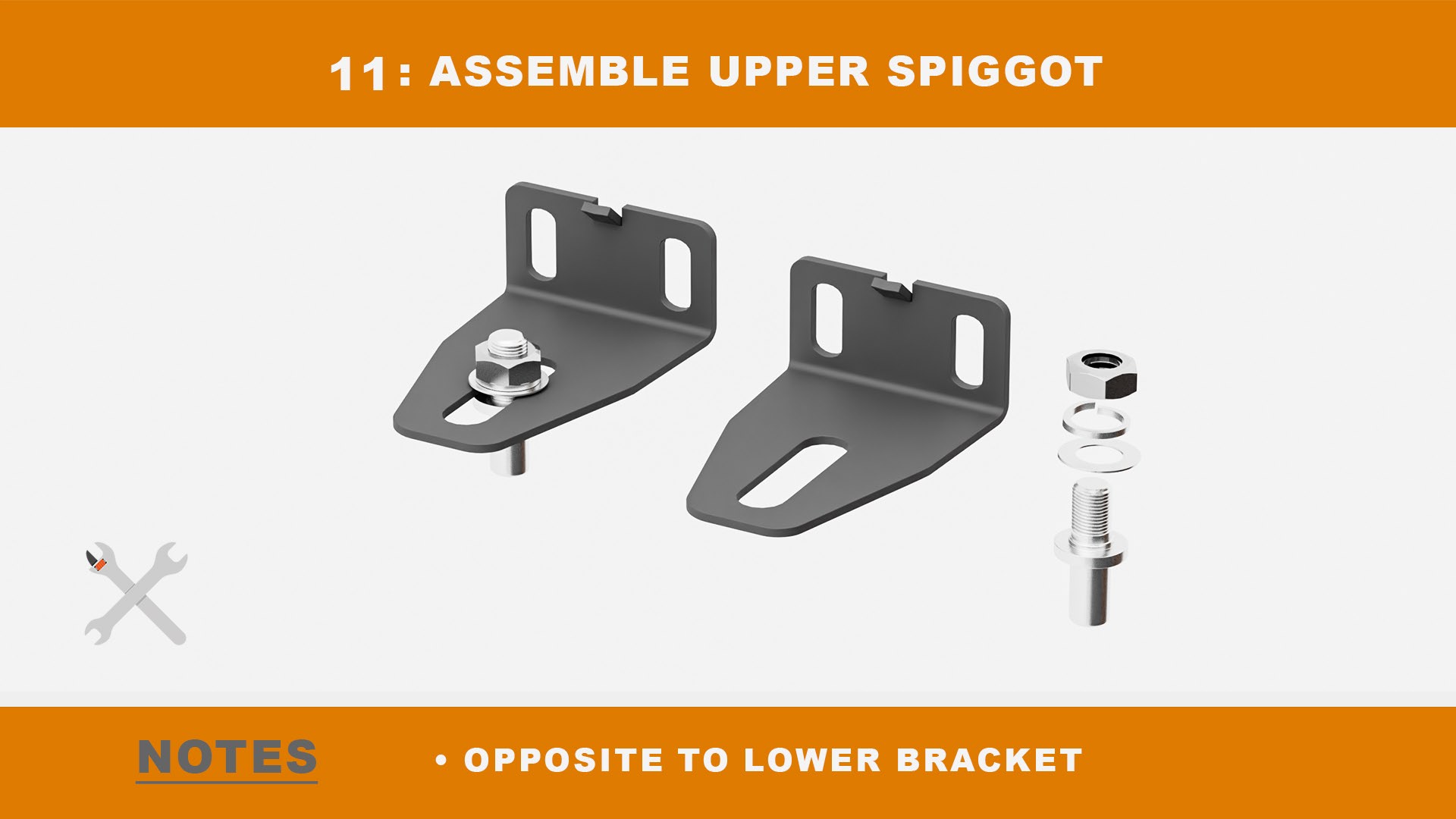

Assemble upper spigot diagram

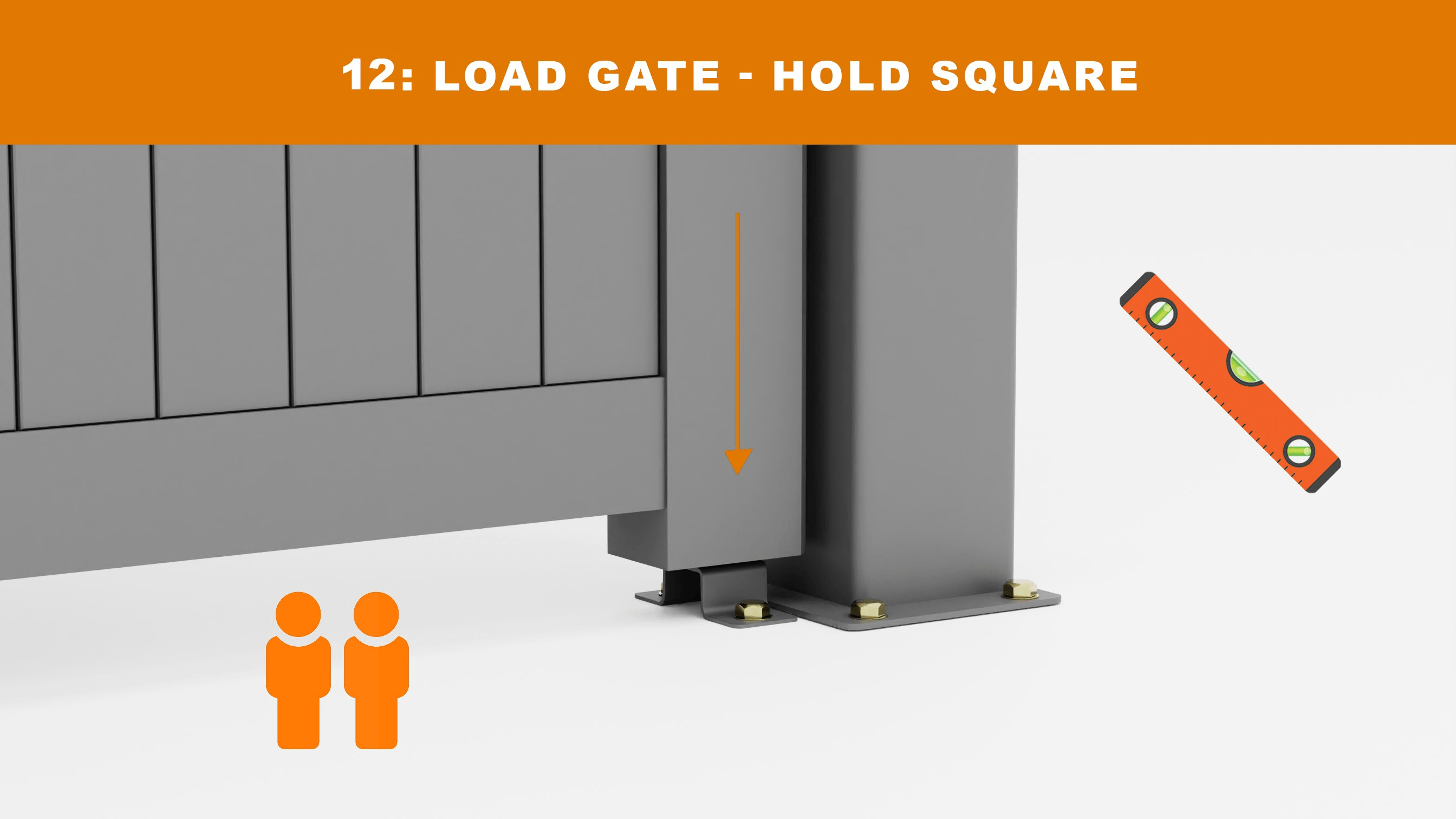

Load gate diagram

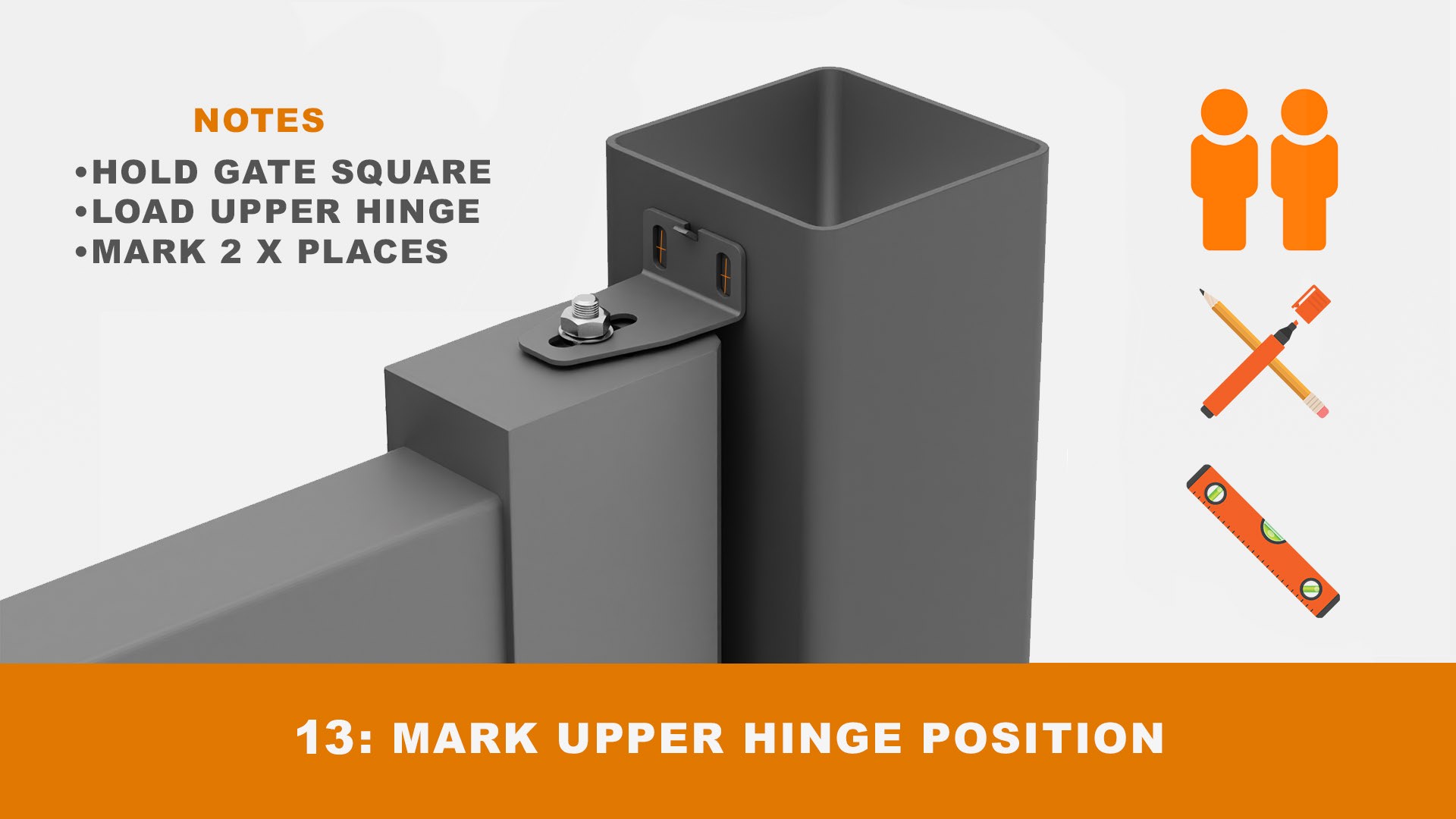

Mark upper hinge bracket diagram

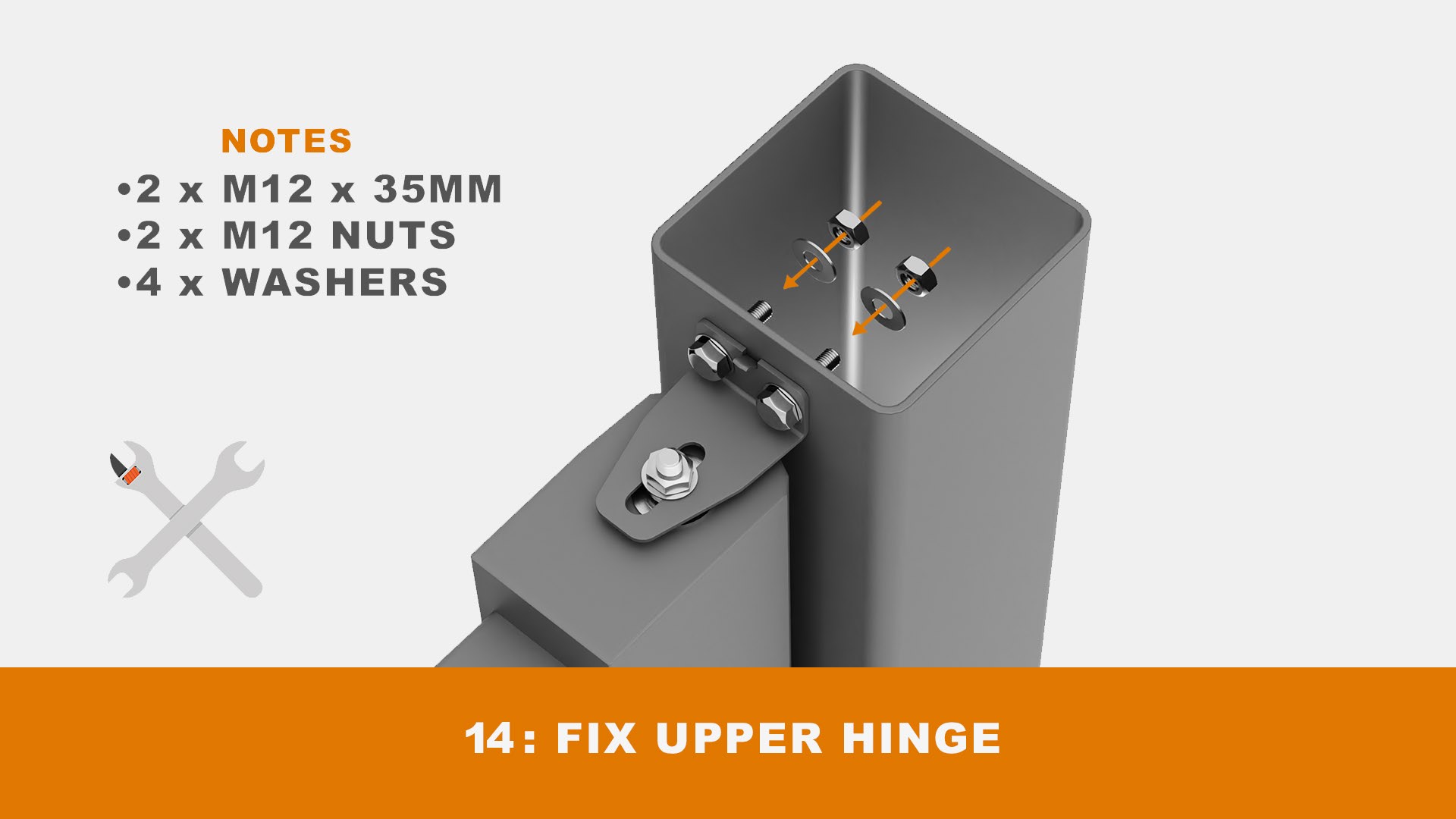

Fix upper hinge diagram

Repeat for second gate illustration

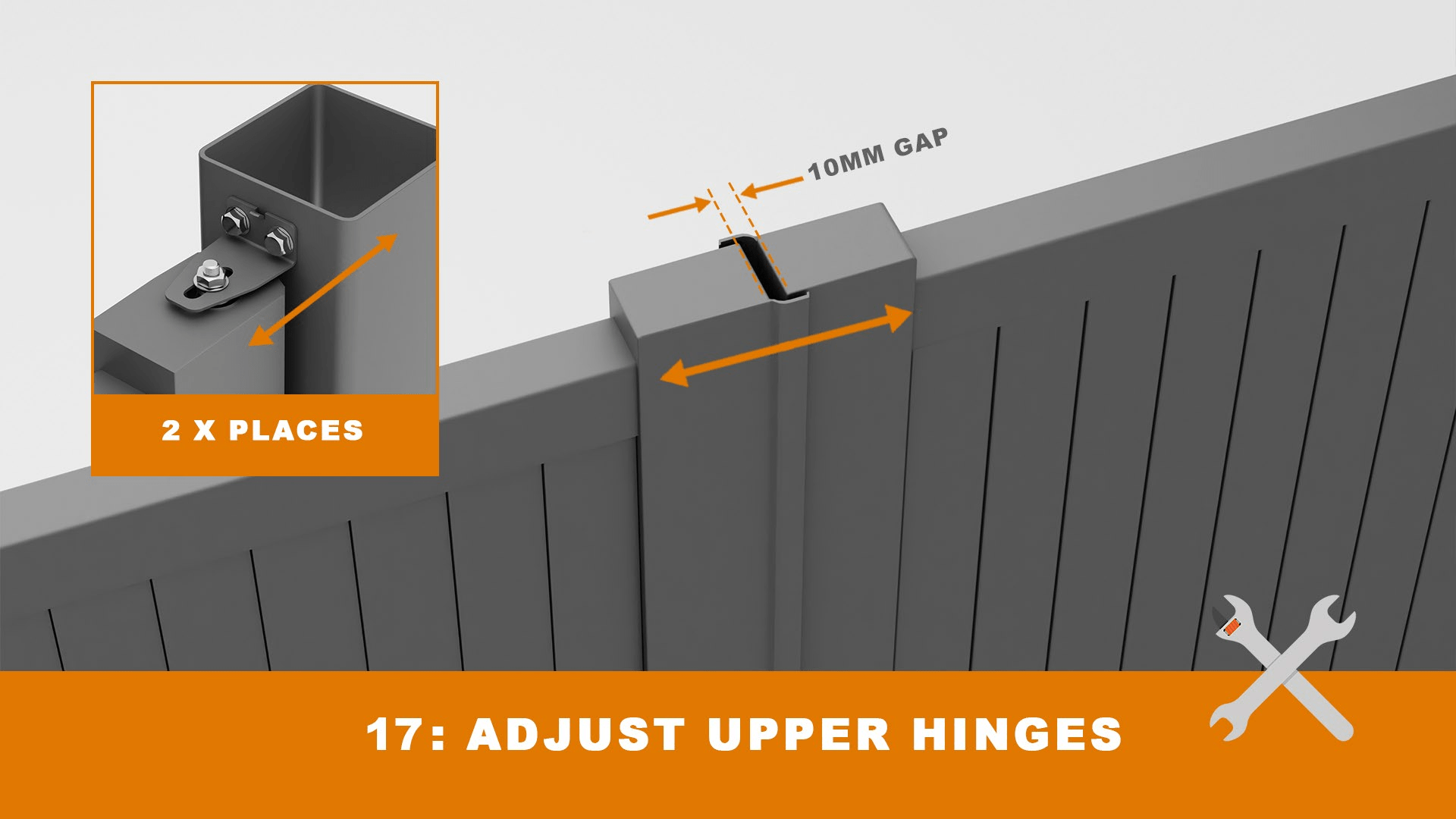

Adjust upper gate hinge diagram

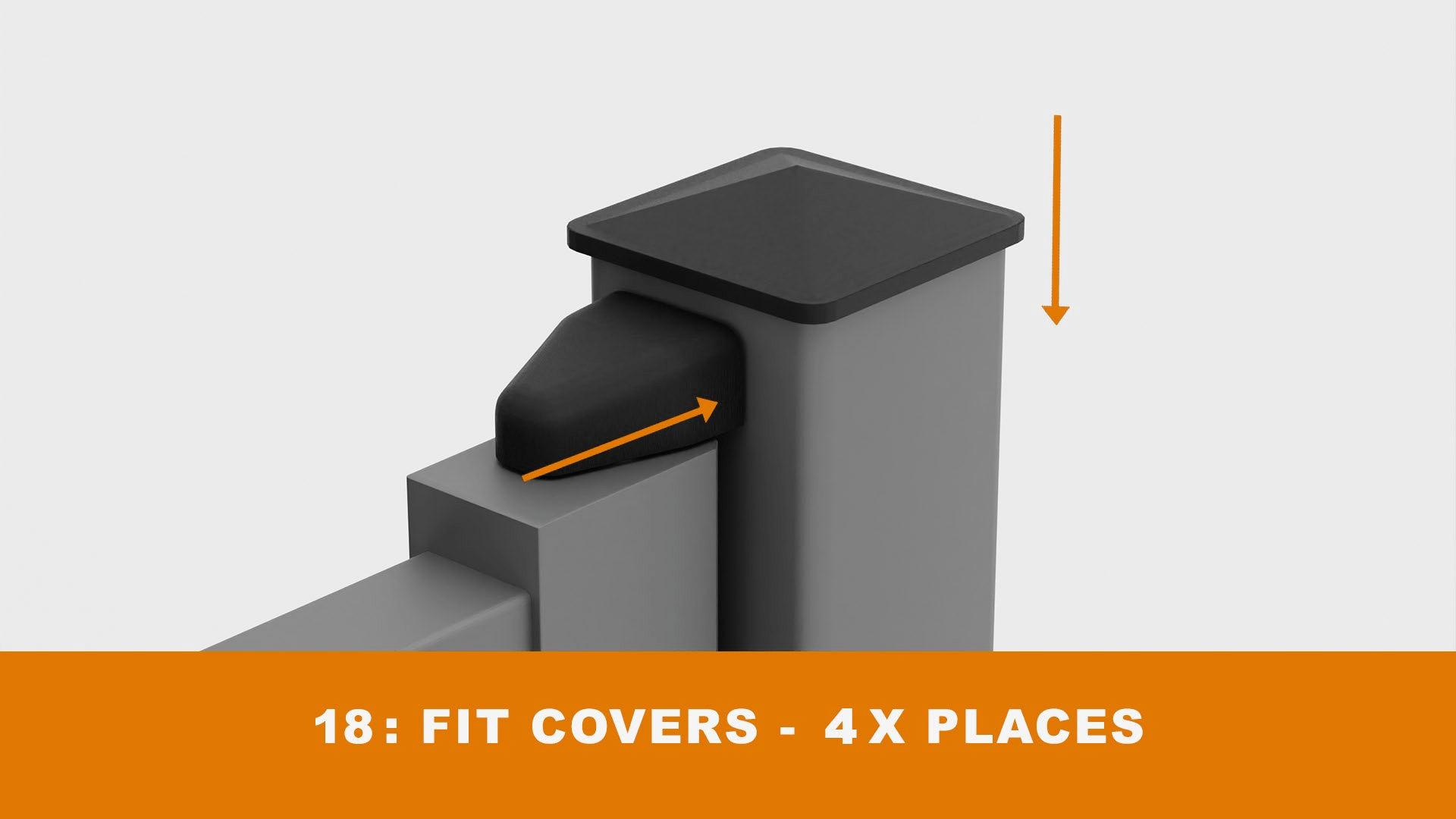

Fit hinge and post cover diagram

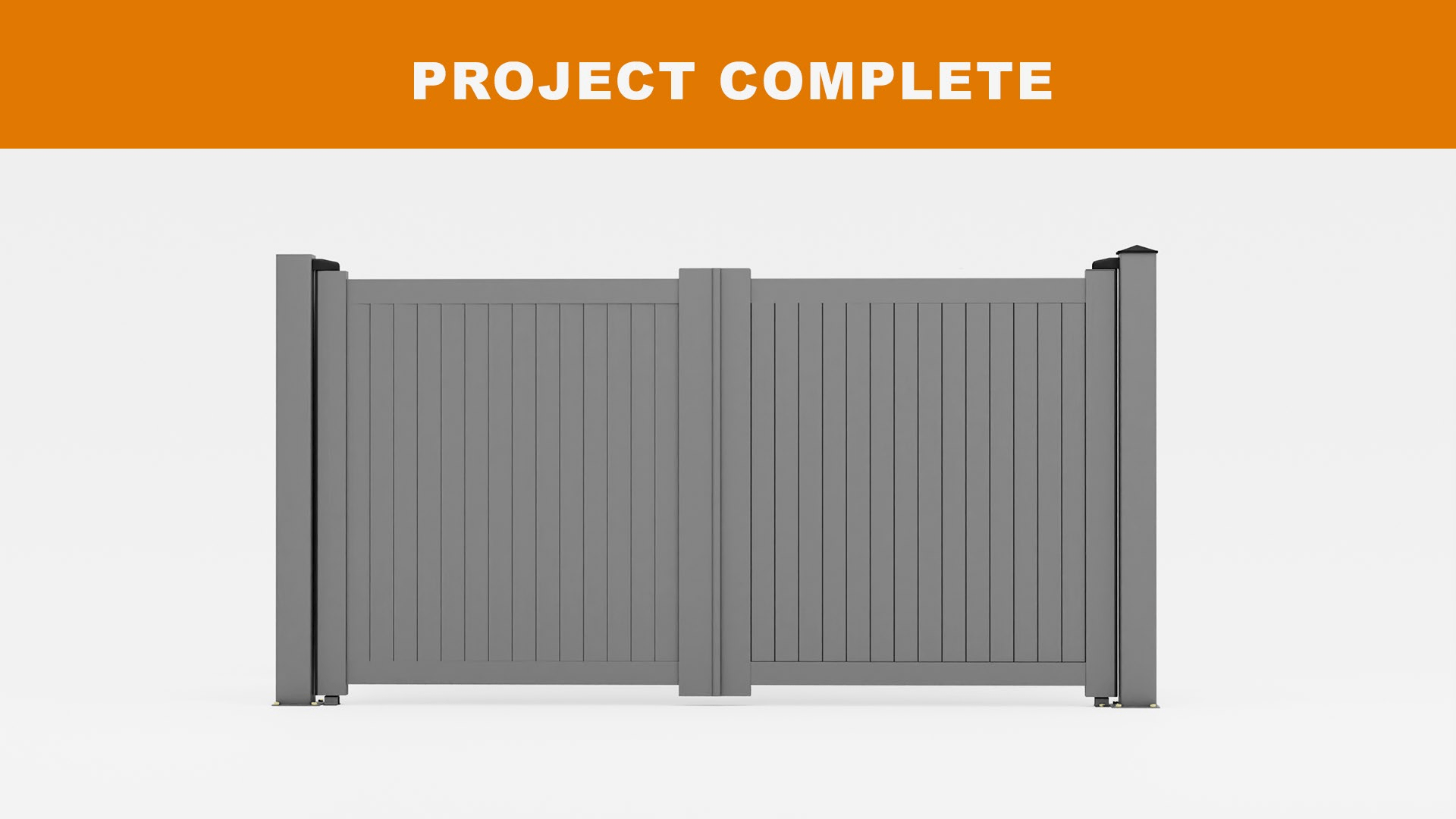

Project is complete diagram
